Cloud DLM-1B Line/Mic Input Module with Dante - Black

Name: Cloud DLM-1B Line/Mic Input Module with Dante - Black
Brand: Cloud
Price: 351.07 GBP
Availability: InStock

Price Each £292.56 (£351.07 Including VAT at 20%)

REF: JP106782

Quantity:

Cloud DLM-1B Line/Mic Input Module with Dante - Black

The Cloud DLM-1B Line/Mic Input Module with Dante is from a range of remote mic/line input modules for use in a Dante-compatible network audio system. A DLM-1 module allows a microphone and/or a stereo music (or other line level) source to be connected at a remote location. The music input is mixed with the mic signal and the resulting output appears as a mono Dante channel at a standard RJ45 Ethernet port. Typically, the Dante channel will then be routed via the Dante network to the audio system (a Dante-equipped amplifier or mixer) feeding the speakers in the area where the module is fitted. Selectable mic-over-music priority is provided. The DLM-1 can be used in any Dante network, or Dante-compatible network. This includes the Cloud CA Series and CV Series of advanced multichannel power amplifiers when they are fitted with a CDI-CA or CDI-CV Dante interface card.

Click Here for Printer Friendly Version

Cloud DLM-1B Line/Mic Input Module with Dante Features

- Remote mic/line input module, for use with all Dante-compatible networks
- AES67 compliant for interoperability with alternative (non-Dante) networks
- Easy connection to network via RJ45 and standard Cat 5 cable
- Powered via PoE - no local PSU required
- Network speed and activity LEDs (on RJ45)
- Balanced mic input (XLR) with level control
- Stereo, unbalanced line level input (phonos/RCA), with independent level control
- Alternative line input on 3-pole 3.5 mm jack socket
- Active mixing of mic and line signals
- Selectable mic-over-music priority
- Selectable hi-pass filter on mic input to reduce handling noise, etc.
- Multiple DLM-1s in the same Zone may be linked using Dante Controller

Cloud DLM-1B Line/Mic Input Module with Dante Specifications

Audio performance - Microphone Input:
- Sensitivity: -50 dBu nominal
- Gain range: 20 to 40 dB
- High pass filter: 120 Hz, 12 dB/octave
- Input headroom: 12 dB
- Frequency response: 20 Hz - 20 kHz +0.5 dB/-0 dB (HPF disabled)
- Noise: Noise gate inactive: -65 dBr, rel 0 dBFS output (Noise gate active: -95 dBr)

Audio performance - Line Inputs:
- Sensitivity:
  - via RCA/phonos: 0 dBu nominal
  - via 3.5 mm jack: -10 dBV nominal
- Maximum input level:
  - via RCA/phonos: +11 dBu
  - via 3.5 mm jack: +4 dBV
- Frequency response: 20 Hz - 20 kHz +0.5 dB/-0 dB
- Noise: -90 dBr, rel 0 dBFS output

Dante specifications:
- Dante transmit channels: 2
- Simultaneous receive flows: 2
- Dante receive channels: 2
- Simultaneous transmit flows: 2
- Sample rates:
  - Dante: 44.1 kHz, 48 kHz
  - AES67: 48 kHz
- Encoding: 16/24/32-bit PCM (default 24-bit)
- Data rates: 10 Mb/s, 100 Mb/s
- Connector: 1 x RJ45
- LEDs: Network speed (yellow), activity (green)
- Software compatibility
- Audinate Dante Controller (configuration and routing)
- Audinate DDM (security and domain management)

Electrical:
- Power requirements: Via PoE. A Class 1 (3.84 W max.) injector required for use with non-PoE switches.
- Power consumption: <1 W

Physical:
- Dimensions (W x H x D): 145 x 85 x 50 mm ( 5.71 x 3.35 x 1.97 inches )
- Weight: 0.35 kg ( 0.77 lbs )

Further Product Information Below

Cloud DLM-1B Data Sheet (PDF)

Cloud DLM-1B Installation Guide (PDF)

Cloud DLM-1B Line/Mic Input Module with Dante Compatibility

- Cloud CA2250 Amplifier with Cloud CDI-CA2 Dante Network Expansion Card
- Cloud CA2500 Amplifier with Cloud CDI-CA2 Dante Network Expansion Card
- Cloud CA4250 Amplifier with Cloud CDI-CA4 Dante Network Expansion Card
- Cloud CA6160 Amplifier with Cloud CDI-CA8 Dante Network Expansion Card
- Cloud CA8125 Amplifier with Cloud CDI-CA8 Dante Network Expansion Card
- Cloud CV2500 Amplifier with Cloud CDI-CV2 Dante Network Expansion Card
- Cloud CV4250 Amplifier with Cloud CDI-CV4 Dante Network Expansion Card
- Cloud CV8125 Amplifier with Cloud CDI-CV8 Dante Network Expansion Card

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Cloud DLM-1B Line/Mic Input Module with Dante - Black

Related products:

Cloud DLM-1W Line/Mic Input Module with Dante - White

Cloud LM-2 Active Line / Mic / Remote Mixer Module with Cat 5

Cloud M-1W Microphone Level Active Input Plate - White

Cloud M-1B Microphone Level Active Input Plate - Black

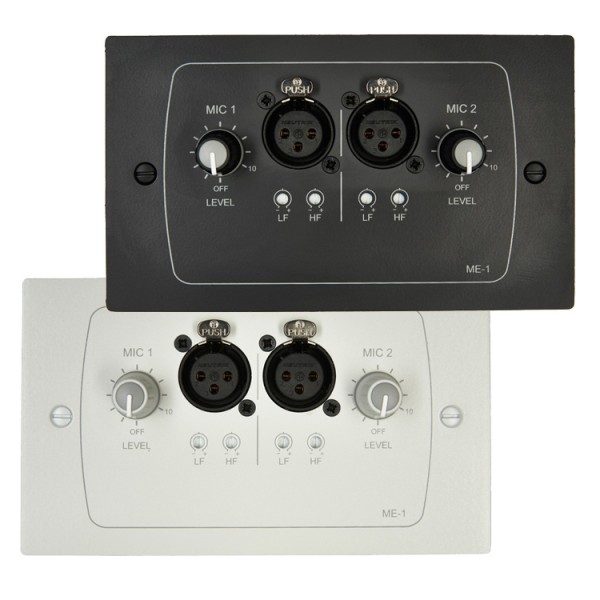

Cloud ME-1 Dual Microphone Input Module for DCM-1 and DCM-1e
