Nexo LS1200 Replacement Parts

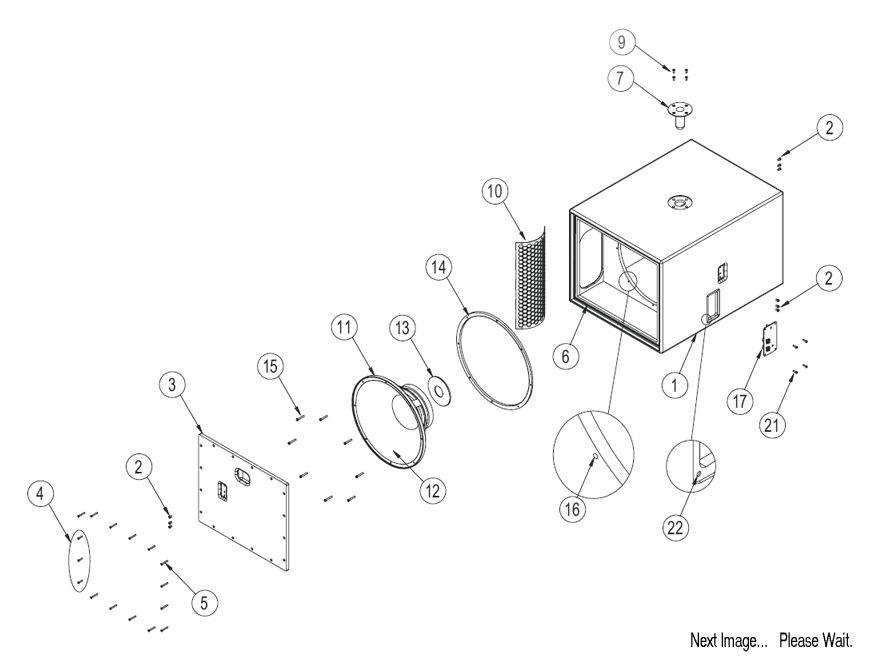

Nexo LS1200 Replacement Parts - Below you will find each part listed separately with a drawing reference number that coincides with the exploded drawing.

Nexo LS1200 Replacement Parts

Nexo LS1200 Replacement Parts - Below you will find each part listed separately with a drawning ref number that coincides with the Exploded drawing.

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Nexo LS1200 Replacement Parts

Nexo LS1200 Replacement Parts

1. Nexo 05EBLS12 Empty Box for Nexo LS1200 Subwoofers

2. Nexo 05VXTCX610N Black Torx Cylindrical Flat Screw 6x10 for Nexo LS1200 Subwoofers

4. Nexo 05VXTCC525N Black Torx VBA TCC Screw 5x25 for Nexo LS1200 Subwoofers

3. Nexo 05COVER1200 Cover for Nexo LS1200 Subwoofers

5. Nexo 05VXTCC540N Black Torx VBA TCC Screw 5x40 for Nexo LS1200 Subwoofers

6. Nexo 05JNEOP5X10 Neoprene Gasket 5x10 for Nexo LS1200 Subwoofers

8. Nexo 05VGRAF6 Graf Nut 6mm for Nexo LS1200 Subwoofers

9. Nexo 05VXTCFX616N Black Torx Flat Head Screw 6x16 for Nexo LS1200 Subwoofers

10. Nexo 05AMGLS1200 Grille for Nexo LS1200 Subwoofers

11. Nexo 05N1826B-6 Bass Speaker 18-Inch Prepared for Nexo LS1200 Subwoofers

12. Nexo 05N1826R/K Recone Kit HP 18-Inch for Nexo LS1200 Subwoofers

13. Nexo 05HPPLAQAR46 HP 18-Inch Rear Plate for Nexo LS1200 Subwoofers

14. Nexo 05JPTZ46 18-Inch Speaker Gasket for Nexo LS1200 Subwoofers

15. Nexo 05VXTCX650N Black Torx Cylindric Screw 6x50 for Nexo LS1200 Subwoofers

16. Nexo 05VGRAF6 Graf Nut 6mm for Nexo LS1200 Subwoofers

17. Nexo 05CNX1200 Connection Plate Complete for Nexo LS1200 Subwoofers

18. Nexo 05JNEOHMPS10V2 Gasket CNX for Nexo LS1200 Subwoofers

19. Nexo 05CNXNL4MP Speakon NL4MP for Nexo LS1200 Subwoofers

21. Nexo 05VXCHB416N Black Torx Button Head Screw 4x16 for Nexo LS1200 Subwoofers

22. Nexo 05VGRAF4 Graf Nut 4mm for Nexo LS1200 Subwoofers

23. Nexo 05CNXLS Connection Plate with Artwork for Nexo LS1200 Subwoofers
