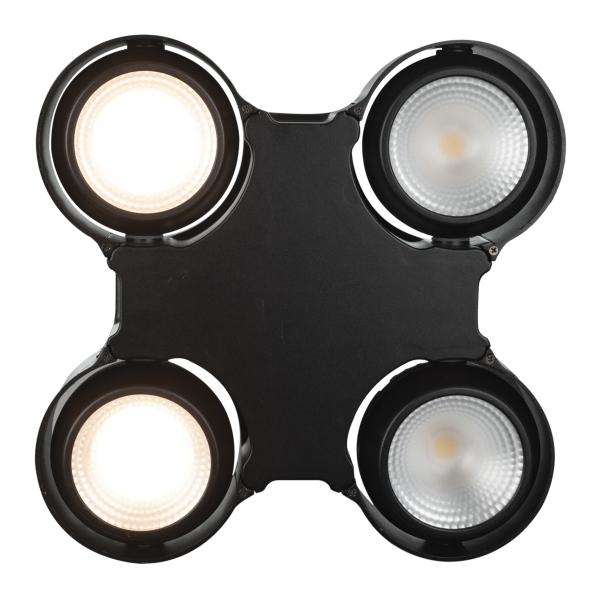

Showtec Stage Blinder 4 LED, 4x 80W

Showtec Stage Blinder 4 LED Features

- Very punchy 4-way LED blinder
- Tungsten simulation
- Compact design

Showtec Stage Blinder 4 LED Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 4
- Light Source Power: 80 W
- LED Colour Type: WW
- Refresh Rate: 3100 Hz
- Luminous Flux (Total): 14000 lm
- CCT: 2490 K

Optical:
- Beam Angle (Horizontal): 65 °
- Beam Angle (Vertical): 65 °

Control and Programming:
- Control Mode: Auto, DMX, Manual
- DMX Channels: 1, 2, 4, 5
- Protocols: DMX
- Display: OLED
- Zone Control (Sections): 4

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-10 Hz

Electrical:
- Power Supply: : 100-240 V AC 50/60 Hz
- Power Consumption: 320 W

Connections:
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P
- Cable Length: 1.5 m

Physical:
- IP Rating: IP20 (indoor use only)
- Material: Metal
- Housing: Metal, Plastic
- Colour: Black
- Cooling: Axial fan
- Mounting Options: Clamp
- Safety Attachment: Yes
- Maximum Ambient Temperature: 40 °C (104 °F)
- Maximum Surface Temperature: 70 °C (158 °F)
- Minimum Operating Temperature: -5 °C (23 °F)
- Dimensions (W x H x D): 385 x 322 x 385 mm
- Weight: 8.75 kg

Further Product Information Below

Showtec Stage Blinder 4 LED Manual (PDF)

Showtec Stage Blinder 4 LED Supplied With

- Power Pro Cable
- Bracket
