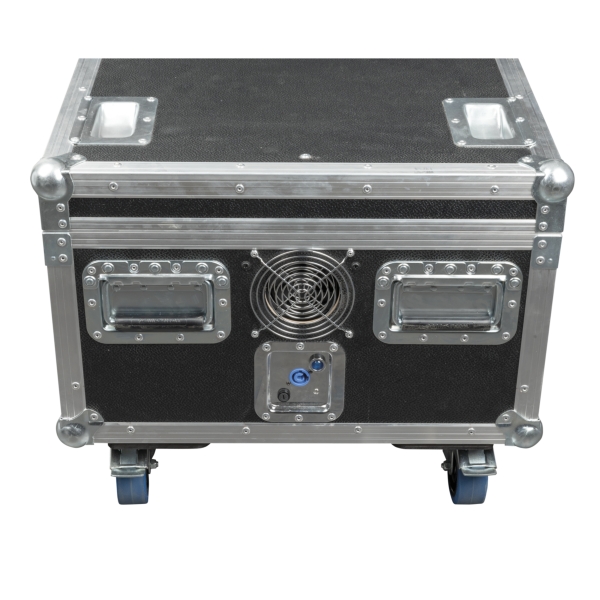

Showtec EventSpot 1600 Q4 RGBW LED Uplighter Set with Charging Case - Black

Showtec EventSpot 1600 Q4 RGBW LED Uplighter Set with Charging Case Features

- Road proof design
- Built-in charger
- 4x 12 W RGBW colour mixing
- Long battery life (up to 15 hours RGBW)
- Built-in safety switch to prevent overheating during loading

Showtec EventSpot 1600 Q4 RGBW LED Uplighter Set with Charging Case Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 4
- Light Source Power: 12 W
- LED Colour Type: RGBW
- Refresh Rate: 12000 Hz
- Luminous Flux (Total): 1580 lm

Optical:
- Beam Angle (Circular): 10 °

Battery:
- Battery Type: Lithium ion
- Battery Voltage: 18.5 V
- Capacity: 15.6 Ah
- Runtime @Full: 8 h
- Charging Time: 6 h

Control and Programming:
- Control Mode:
  - Auto
  - Built-in Program
  - DMX
  - Manual
  - Master/Slave
- DMX Channels: 4, 6, 10
- Protocols: DMX
- Wireless: Wireless DMX
- Display: OLED, Touch
- Dim Curve:
  - Linear
  - Square
  - I-Square
  - S-Curve

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-15 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 403 W
- Power Connector In: Power Pro Blue
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only), IP54
- Housing: Aluminium, Flightcase, Metal
- Colour: Black
- Dimensions (W x H x D): 655 x 505 x 580 mm
- Weight: 63 kg

Product Properties:
- Cooling: Axial fan

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Rigging:
- Mounting Options: Bracket, Clamp

Further Product Information Below

Showtec EventSpot 1600 Q4 RGBW LED Uplighter Set with Charging Case Manual (PDF)

Showtec EventSpot 1600 Q4 RGBW LED Uplighter Set with Charging Case Supplied With

- Power Pro Cable
- Quick-Lock Bracket
- IR Remote
