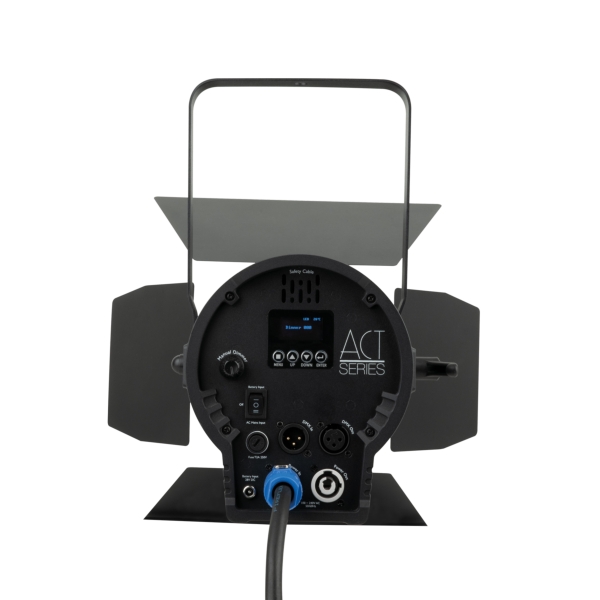

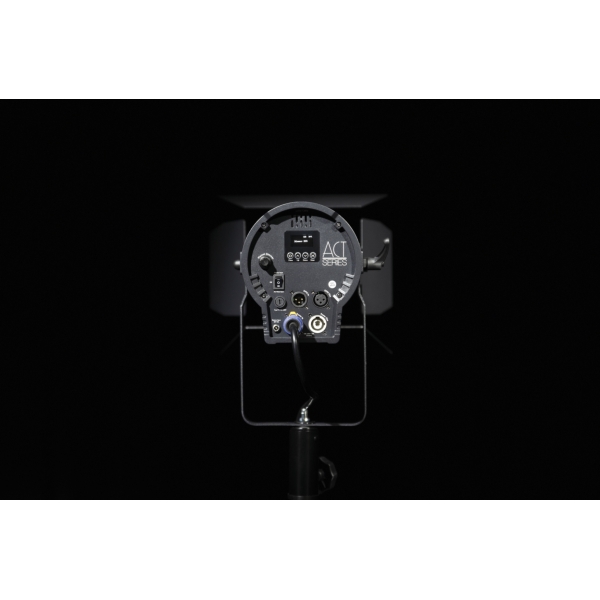

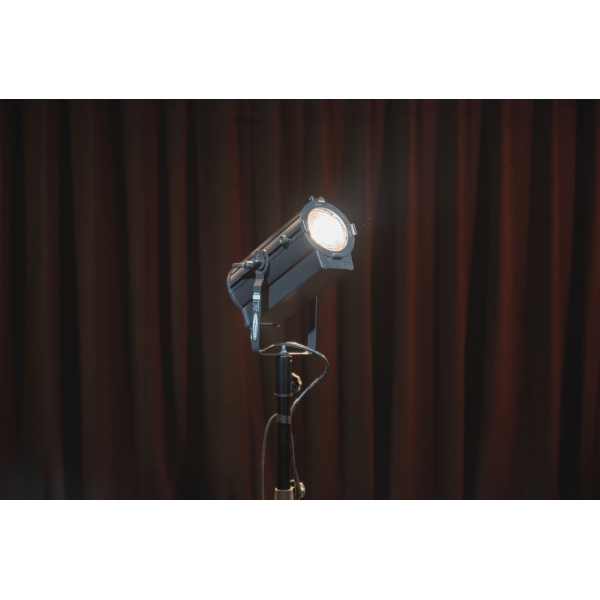

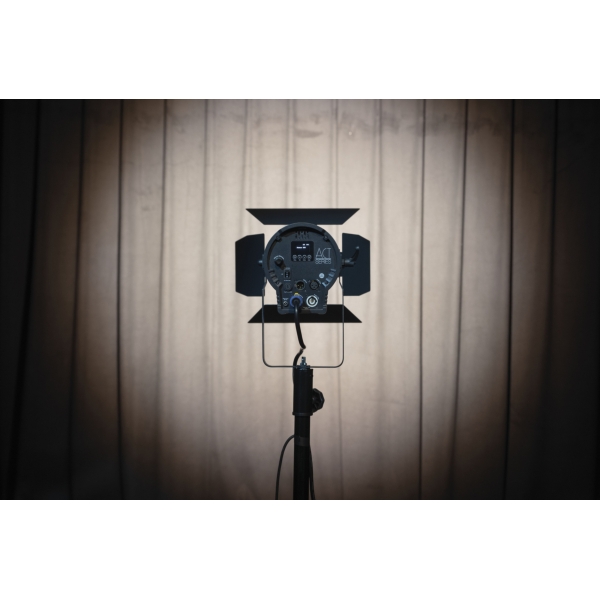

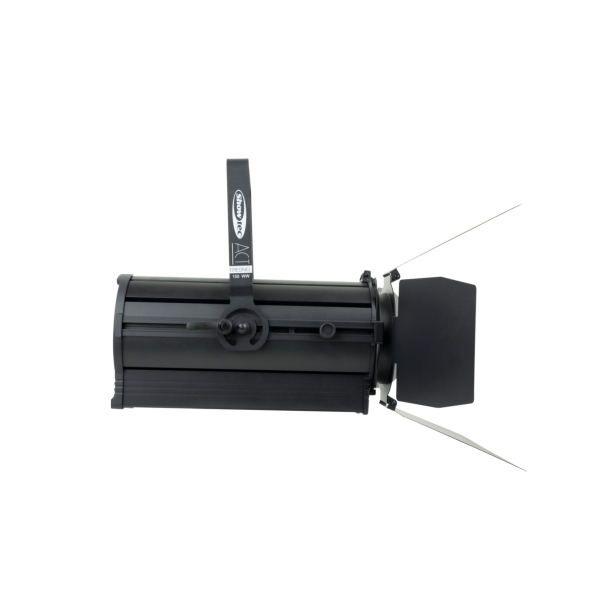

Showtec Act Fresnel 150 WW LED Fresnel, 3000 K

Showtec Act Fresnel 150 WW LED Fresnel Features

- 150 W WW LED with high CRI for accurate colour rendering

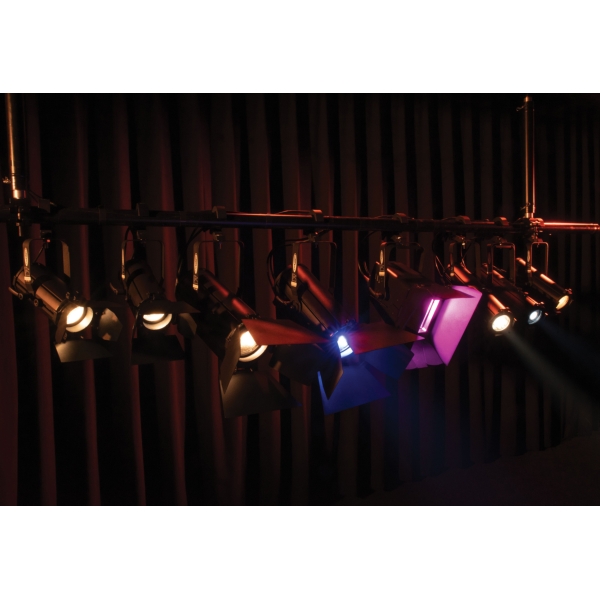

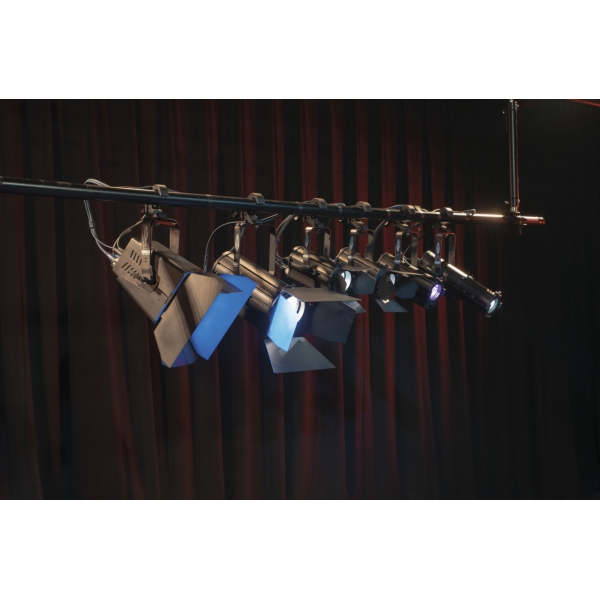

- Suitable for theatrical applications, museums, and exhibitions
- High CRI for accurate colour rendering
- Silent operation
- Manually adjustable zoom and dimmer

Showtec Act Fresnel 150 WW LED Fresnel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 150 W
- LED Colour Type: WW
- Light Source System: COB
- Illuminance @ 2 m: 24117 lx
- Illuminance @ 3 m: 10719 lx
- Illuminance @ 5 m: 3859 lx
- Luminous Flux (Total): 8780 lm
- CRI: 96
- Maximum CCT: 3000 K

Optical:
- Field Angle Minimum (Circular): 22 °
- Field Angle Max. (Circular): 57 °
- Zoom Type: Manual
- Zoom Minimum: 14 °
- Zoom Maximum: 44 °

Battery:
- Battery Type: Optional external battery
- Battery Voltage: 28 V

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 2
- Protocols: DMX, RDM

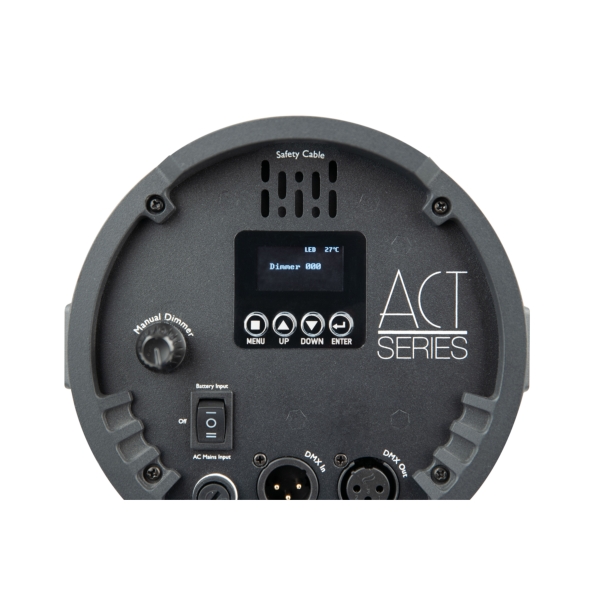

- Display: OLED
- Dim Curve: Linear, Square, I-Square, S-Curve

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 170 W
- Fuse: 3.15 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 225 x 345 x 415 mm
- Weight: 4.1 kg

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes

Product Properties:
- Cooling: Convection/Axial fan

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Further Product Information Below

Showtec Act Fresnel 150 WW Manual (PDF)

Showtec Act Fresnel 150 WW LED Fresnel Supplied With

- PowerCON cable

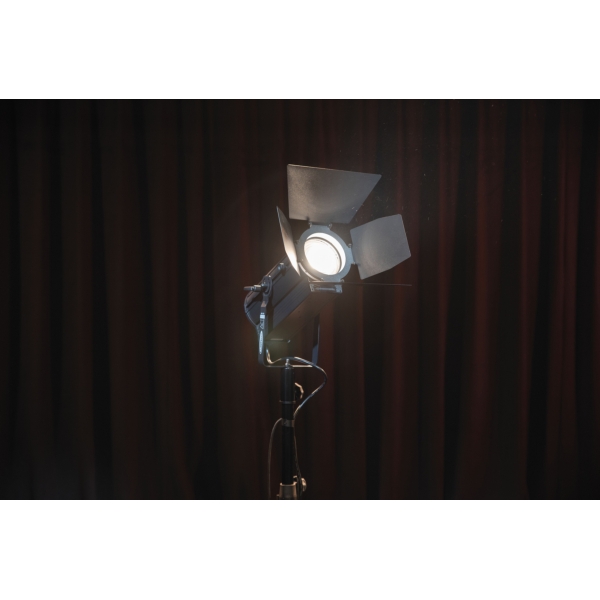

- Barndoor
- Filterframe
- Bracket
