Showtec Act Fresnel 150 RGBAL LED Fresnel

Name: Showtec Act Fresnel 150 RGBAL LED Fresnel
Brand: Showtec
Price: 514.75 GBP
Availability: InStock

Price Each £428.96 (£514.75 Including VAT at 20%)

REF: JP109057

Quantity:

Showtec Act Fresnel 150 RGBAL LED Fresnel

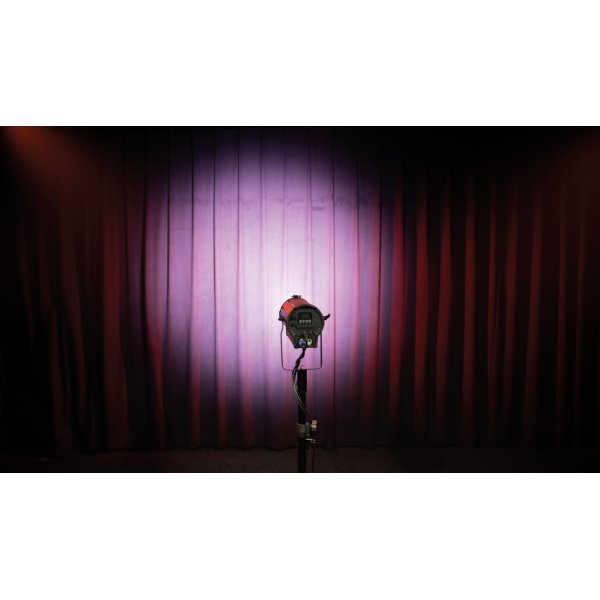

The Showtec Act Fresnel 150 RGBAL LED Fresnel is a compact 280-watt RGBAL COB LED Spot with high CRI (>90) and silent operation, suitable for theatrical applications, museums, and exhibitions. It uses a 280 W RGBAL light source to optimise the colour output, allowing you to create a wide gamut of colours while maintaining a high CRI. This also allows it to achieve high light output even in single colours. The 280 W LED has 56 W per colour and a total combined maximum of 150 W. It projects a bright, soft beam of light within a wide, manually adjustable zoom range of 14°-36°. The ACT Fresnel 150 RGBAL can be controlled via DMX, RDM, and it is equipped with two knobs for manual colour and dimmer control. It is supplied with a barndoor and filter frame, allowing you to shape its output.

Click Here for Printer Friendly Version

Showtec Act Fresnel 150 RGBAL LED Fresnel Features

- 280 W RGBAL LED for accurate colour rendering
- Suitable for theatrical applications, museums, and exhibitions
- Silent operation
- Manually adjustable zoom and dimmer
- Compact design

Showtec Act Fresnel 150 RGBAL LED Fresnel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 280 W
- LED Colour Type: RGBAL
- Light Source System: COB
- Illuminance @ 2 m: 7665 lx
- Illuminance @ 3 m: 3407 lx
- Illuminance @ 5 m: 1226 lx
- Luminous Flux (Total): 2355 lm
- CRI: 93
- Minimum CCT: 2700 K
- Maximum CCT: 10000 K

Optical:
- Field Angle Minimum (Circular): 23 °
- Field Angle Max. (Circular): 53 °
- Zoom Type: Manual
- Zoom Ratio: 1:3
- Zoom Minimum: 14 °
- Zoom Maximum: 36 °

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 5, 8, 12
- Protocols: DMX
- Display: OLED
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 176 W
- Fuse: 3.15 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Material: Aluminium
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 220 x 343 x 362 mm
- Weight: 5.9 kg

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes
- Safety Eyes: 1

Product Properties:
- Cooling: Forced Convection

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Further Product Information Below

Showtec Act 150 RGBAL Manual (PDF)

Showtec Act Fresnel 150 RGBAL LED Fresnel Supplied With

- PowerCON cable
- Barndoor
- Filterframe
