Pulse PDS8-C13 8-Way Switched IEC Rack Panel

Price Each £38.00 (£45.60 Including VAT at 20%)

REF: JP102531

Quantity:

Pulse PDS8-C13 8-Way Switched IEC Rack Panel

The Pulse PDS8-C13 8-Way Switched IEC Rack Panel is a rack mount unit allowing easy on/off control of up to 8 channels of lighting effects. The illuminated rocker switches make this unit ideal for both portable and fixed installation applications.

Click Here for More Info.

Pulse PDS8-C13 8-Way Switched IEC Rack Panel Features

- 19-inch 1U rack mountable

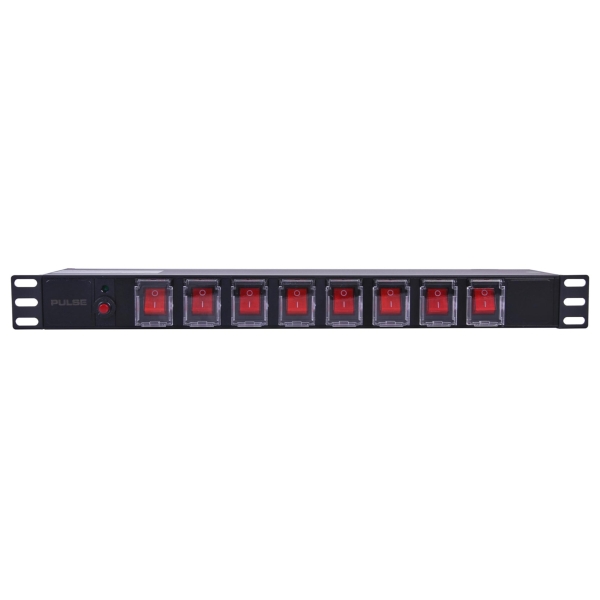

- 8x Illuminated switches
- Flip-up switch access covers helps to reduce accidental switching

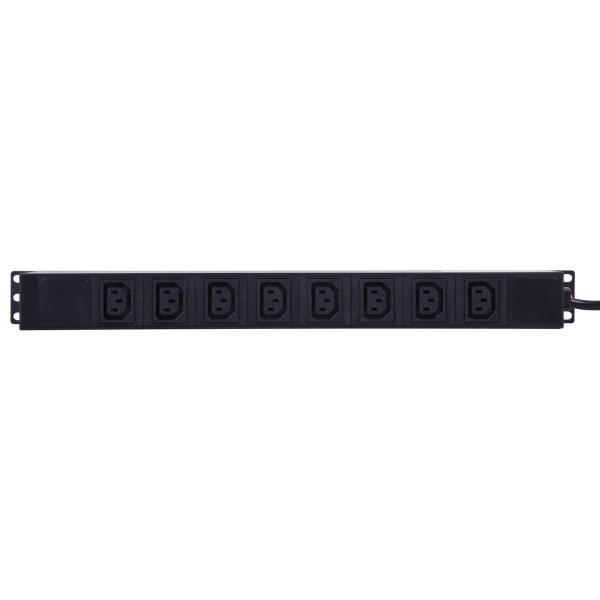

- 8x IEC outlets
- 10A Resettable circuit breaker

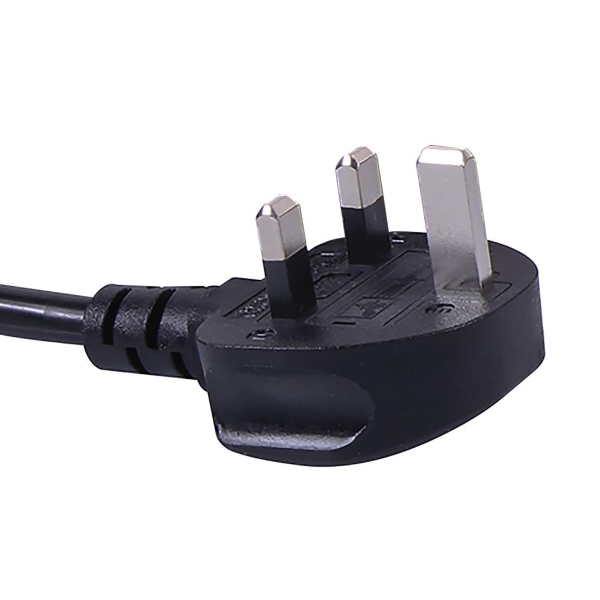

- 2m Lead with UK plug

Pulse PDS8-C13 8-Way Switched IEC Rack Panel Specifications

- Cable Length: 1.8m
- Supply Voltage VAC: 240V
- Max. Load: 10A
- Total load: 2400W
- Power supply: 240V AC
- Dimensions (W x H x D): 482 x 45 x 90 mm

Data Sheets below
