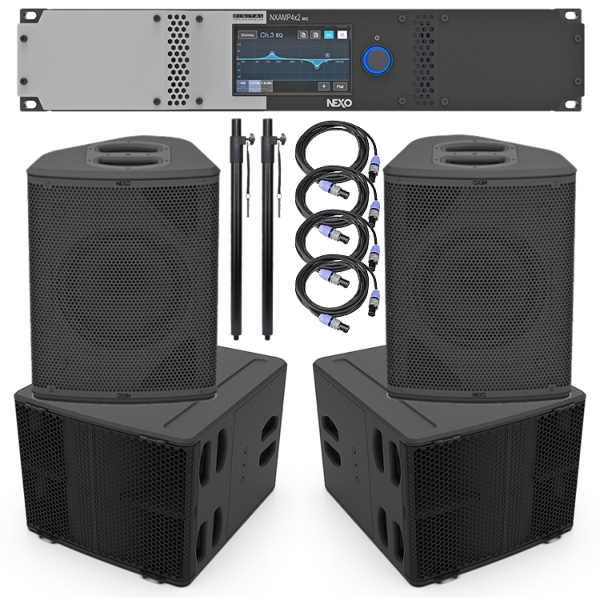

Nexo 2x P+12 Top Boxes, 2x L15 Sub Bass Cabinets, Nexo NXAMP4X2MK2 Controller/Amplifier Inclusive System Package

Nexo P12 12-Inch 2-Way Passive Touring Speaker Features

- Compact, low-profile, curvilinear enclosure
- 12-inch LF Neodymium driver and 3-inch diaphragm HF driver in a coaxial configuration
- Variable HF directivity
- Switchable Active/Passive modes
- 140dB peak SPL (Active Mode)
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Stand fitting on both sides
- 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
- Touring, installation and TIS versions

Nexo L15 Sub Bass Cabinet Features

- Dedicated partner sub for P12 with matching footprint
- Extends LF performance to 40Hz
- 139dB peak SPL
- 1x 15-inch long-excusion Neodymium driver
- Can be deployed in standard and cardioid modes
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Standard fitting M20

Nexo NXAMP4X2MK2 Powered Digital TD Controller/Amplifier Features

- NEXO and Yamaha collaborate to create the perfect, light weight power and control solution for NEXO loudspeaker systems
- Achieves significant advances in sound quality over previous generation NXAMPs
- 4x ultra-low distortion Class D amplifiers
- 4x 2500 Watts
- All essential parameters accessible via a large colour touchscreen on the front panel
- Universal 100 - 240 mains voltage range
- Uses PFC (Power Factor Correction) technology
- Remote control card fitted as standard
- Optional Dante, EtherSound, AES and Dante + AES network cards available

Nexo P12 12-Inch 2-Way Passive Touring Speaker Specifications

- Frequency Response (+6 dB): 60 Hz - 20 kHz
- Sensitivity 1W@1m: 107 dB
- Peak SPL Level (1m): 138dB Peak (Passive mode) / 140dB Peak (Active mode)
- Recommended Amplifiers: 800 to 1250 Watts / 8Ω
- HF Dispersion (according to horns): 60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40°
- Crossover Frequency: 60 Hz, 85 Hz, 120 Hz
- Nominal Impedance: Active mode (8Ω LF, 8Ω HF), Passive mode: 8Ω
- Recommended Power: Active: (800 to 1250 W LF + 400 to 630 W HF) / Passive: 800 to 1250 W
- Drivers:
  - HF: 1x 3-inch - 8Ω - Neodymium driver
  - LF: 1x 12-inch - 8Ω
- Number of ways: 2 ways passive (2+/2- P12) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
- Connectors: 4x NL4, 4 poles connectors (1 per handle + 2 at the back)
- Rigging points: 1 x universal accessory ?t on each side + 1 x on the bottom
- Material: Custom made bent plywood of baltic birch and poplar
- Finish: Black structural paint
- Front Finish: Steel front grille + back mesh
- Operating Temperature Range: 0°C - 40°C (32°F - 104°F)
- Storage Temperature Range: -20°C - 60°C (-4°F - 140°F)

Physical:
- Dimensions (W x H x D): 432 x 534 x 314 mm
- Weight: 20 kg

Specifications are measured while driven with NEXO Processing

Nexo L15 Sub Bass Cabinet Specifications

- Frequency Response (+6 dB): 40 Hz - 120 Hz
- Peak SPL Level (1m): 139 dB Peak
- Recommended Amplifiers: 850 to 1350 Watts / 4 Ω
- Crossover Frequency: 85 Hz, 120 Hz
- Nominal Impedance: 4Ω
- Components: 1x 15-inch - 4 Ω - Long excursion - Neodymium driver
- Connectors: 2x NL4, 4 poles connectors
- Rigging Points: 1x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
- Material: Custom made bent plywood of Baltic birch and poplar
- Finish: Black structural paint
- Front Finish: Steel front grille
- Operating Temperature Range: 0°C - 40°C (32°F - 104°F)
- Storage Temperature Range: -20°C - 60°C (-4°F - 140°F)

Physical:
- Dimensions (W x H x D): 550 x 439 x 650 mm
- Weight: 35 kg

Specifications are measured while driven with NEXO Processing

Nexo NXAMP4X2MK2 Powered Digital TD Controller/Amplifier Specifications

Power Specifications:
- Number of channels: 4 amplifier channels, 2 by 2 bridgeable
- Max output voltage (no load): 4 x 140 V
- Max output power:
  - 4 channels / 8 Ω per channel: 4x 1,200 W
  - 4 channels / 4 Ω per channel: 4x 1,900 W
  - 4 channels / 2 Ω per channel: 4x 2,500 W
  - 2 channels / 8 Ω per channel: 2x 3,800 W
  - 2 channels / 4 Ω per channel: 2x 5,000 W
- Power consumption (Standby): 10 W
- Power consumption (idle): 200 W
- Input to Power Out Specifications:
- Frequency response: 10 Hz ? 20 KHz ±1 dB
- Input Impedance / Input Sensitivity: 20 K Ω / 16 dBu
- Dynamic range / TDH + N: 110 dB unweighted / Typical 0.01% ?Flat setup?
- Lantency: 580 us on a flat setup
- Audio AD and DA converters: 24-bits @ 96 KHz
- Processing: 3x multicore 64-bits processing DSPs

Back Panel features:
- Analogue audio inputs: 4x balanced analogue inputs on XLR3
- Power outputs: 4xNeutrik Speakon NL-4 outputs
- RS232 port: 1xDB-9 connector dedicated for DPU connection
- GPIO port: 1?DB-25 connector with 5x Inputs and 8x Outputs for DMU connection
- Expansion slot: For networking and digital audio cards, 4x digital audio inputs and remote control
- Main sockets: 1x Neutrik Powercon NAC3 (1x 20 A)

User interface and controls:
- Front panel buttons and knobs: Rotary encoder with push and backlight, tactile screen
- Display: 4.3 inches diagonal colour display, WQVGZ, 480 x 272

Electrical:
- Mains voltage: Universal power supply with active PFC 100-240 Volts (50/60 Hz)
- Power consumption ?1/4 max 2 Ω?: 3500 W

Certification / Qualification:
- Electrical safety certification: cULus, CB (CE), CCC, PSE, KC
- EMC certification: CE, FCC
- Green status: Compliant with ROHS directive

Physical:
- Dimensions (W x H x D): 480 x 88 x 502 mm
- Weight: 16.1 kg

Further Product Information Below
