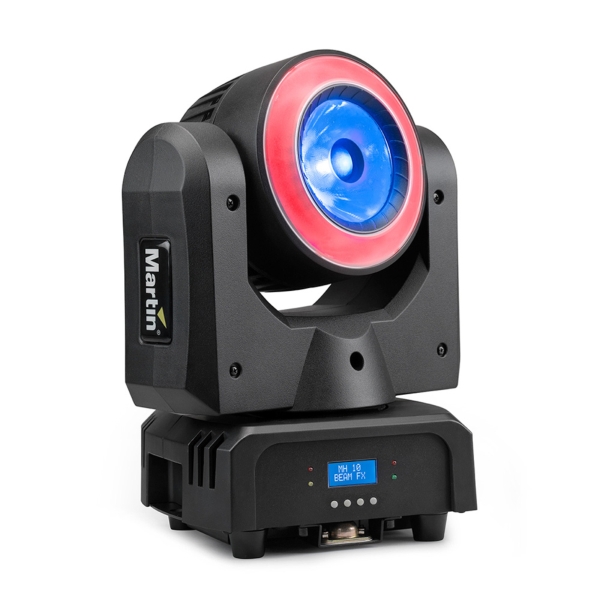

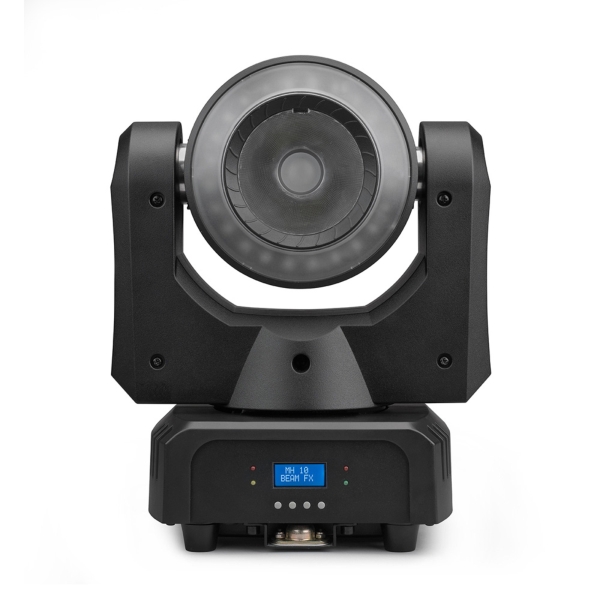

Martin RUSH MH10 Beam FX Compact 60W RGBW LED Moving Head

Martin RUSH MH10 Beam FX Compact 60W RGBW LED Moving Head Features

- Continuous pan/tilt for unrestricted movement and high-speed looks
- Bright 60 W Osram RGBW LED engine
- LED ring with 24 independently-controllable LEDs
- Collimator lens with tight 4.5° beam angle
- Ambient glow ring with 24 individually pixel-controllable RGB LEDs
- Electronic dimming and Strobe
- Temperature-controlled fan cooling
- Unlimited Pan & Tilt rotating
- 3 + 5 pin XLR DMX connection
- Neutrik TRUE 1 in and thru socket

Martin RUSH MH10 Beam FX Compact 60W RGBW LED Moving Head Specifications

- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 0° C (32° F)
- Total heat dissipation (calculated, ± 10%): 1300 BTU/hr. (at full intensity, full white)
- Mounting points: One quarter-turn omega bracket for rigging clamp
- Location: Indoor use only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 100 mm (4 in.)
- Minimum distance to illuminated surfaces: 200 mm (8 in.)
- Minimum clearance around fan and air vents: 100 mm (4 in.)

Optical:
- Minimum LED lifetime: 20,000 hours to >70% luminous output
- Beam effect light source: 60 W RGBW Osram LE RTDUW S2WP
- Ring effect light source: 24 x 0.25 W RGB LEDs
- Cutoff beam angle: 4.4°
- Binning: Tight color and flux binning

Dynamic Effects:
- Beam color mixing: RGBW
- Pre-programmed effects: FX (effect macros) in ring with variable speed and direction of sequences, synchronization and chases across multiple fixtures
- Ring color mixing: RGB, grouped or individual control of 24 cells
- Virtual color wheel: 33 color presets, virtual color wheel rotation effects, random color (independent in beam and ring)
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring)
- Pan: 540°
- Tilt: 270°
- Pan and tilt speed: Adjustable via onboard control panel and DMX
- Dimming: 0-100%, coarse and fine control (independent in beam and ring)
- Pan and tilt rotation effect: Constant, variable speed and direction

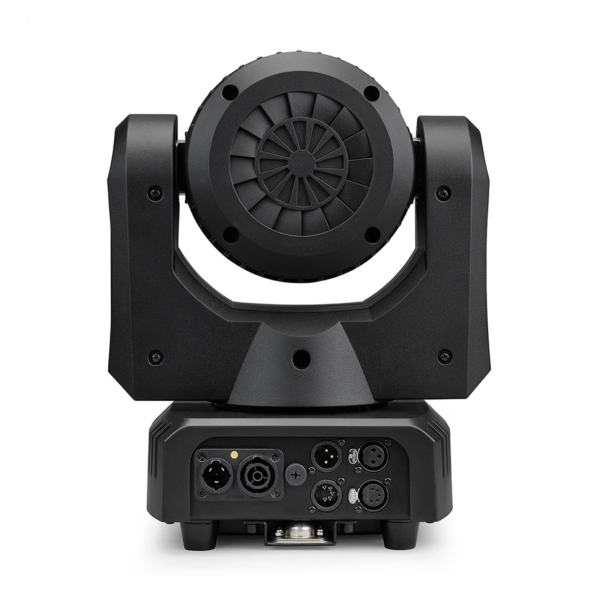

Connections:
- AC power in, thru: Neutrik TRUE1
- DMX data in, thru: 3-pin and 5-pin locking XLR

Control:
- Control options: DMX, RDM, stand-alone, master/client
- DMX channels: 24 or 93
- Setting and addressing: Control panel with backlit LCD display
- Stand-alone trigger options: Music trig, auto trig
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20

Electrical:
- AC power: 100-120 / 200-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Power @ 230V 50Hz: 0.49 A, 108 W, PF 0.99

Certification / Qualification:
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3

Physical:
- Housing: High-impact flame-retardant thermoplastic
- Color: Black
- Protection rating: IP20
- Length: 275 mm (10.8 in.)
- Width: 188 mm (7.4 in.)
- Height: 325 mm (12.8 in.)
- Weight: 7.5 kg (16.5 lbs.)

Further Product Information Below

Martin RUSH MH10 Beam Manual (PDF)

Martin RUSH MH10 Beam Data Sheet (PDF)

Martin RUSH MH10 Beam Technical Drawing (PDF)

Martin RUSH MH10 Beam FX Compact 60W RGBW LED Moving Head Supplied With

- Martin RUSH MH10 Beam fixture
- Power cable, 1.5 m (4.9 ft.) without mains plug
