JTS RU-8012DB Dual Radio Microphone System with JTS RU-G3TH Handheld, JTS RU-G3TB Body Pack and JTS CM-501 Microphone - Channel 38 to 42

JTS RU-8012DB Dual Radio Microphone System with JTS RU-G3TH Handheld, JTS RU-G3TB Body Pack and JTS CM-501 Microphone - Channel 38 to 42 Features

JTS RU-8012DB Dual Receiver Features

- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Removable antennas (BNC connection)
- Auto-scan function
- Pilot tone squelch and noise mute
- Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B, RF receiving level, AF audio level
- XLR output (ballanced) and 6.3 mm jack output (unballanced)

JTS RU-G3TH Hand Held Microphone Transmitter Features

- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Pilot tone squelch and noise mute
- Lock function/mute function
- Special design to reduce handling noise, structure-borne noise and acoustic feedback
- Backlit LCD for indicating battery status and low battery alert
- Switchable transmitting power

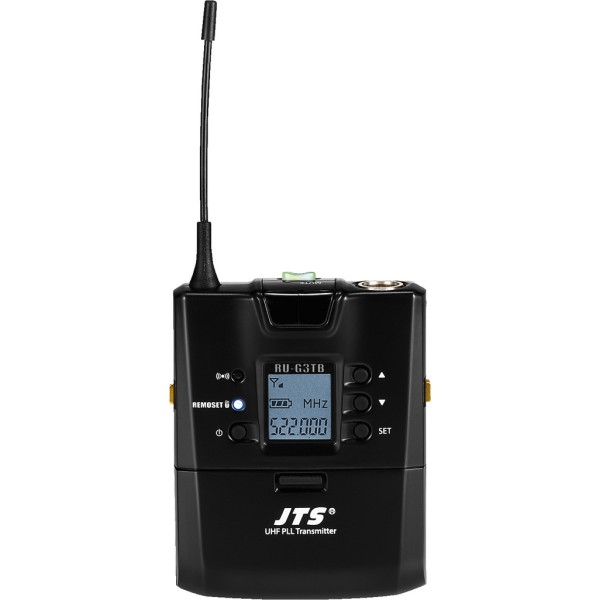

JTS RU-G3TB Body Pack Transmitter Features

- Phase-locked Loop (PLL) synthesized tuner
- Powered by 2 x AA batteries with 12 hrs. average battery life
- Equipped with 4 Pin Mini XLR connector
- LCD display with channel and battery life indicator, ID number
- The "lock-on" function prevents tampering and RF interruption
- Extended dynamic range and smooth frequency response
- Noise mute and tone-key squelch
- Compatible with Guitar cable and wireless instrument microphones

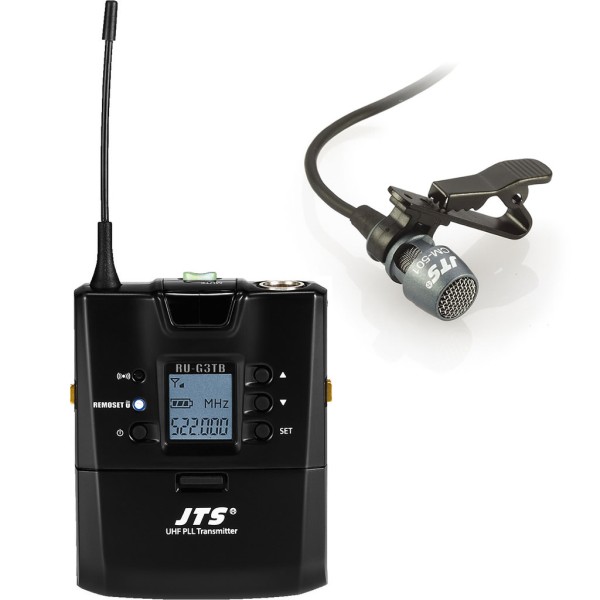

JTS CM-501 Condenser Lavalier Microphone Features

- Uni-direction for high-quality voice pick-up
- Wide dynamic range and frequency response for excellent sound reinforcement
- Small size for minimum visibility
- Together with clip for easy attaching to a tie, lapel, dress etc

JTS RU-8012DB Dual Radio Microphone System with JTS RU-G3TH Handheld, JTS RU-G3TB Body Pack and JTS CM-501 Microphone - Channel 38 to 42 Specifications

- Carrier Frequency Range: Channel 38 to 42, 606.5 - 642 MHz (License Required)

JTS RU-8012DB Dual Receiver Specifications

- Frequency response: 50Hz - 18kHz
- Net Dimension (WxHxD): 212.3mm x 38.3mm x 144mm
- Sensitivity: -95dBm, S/N >80dB
- Frequency Preparation: PLL Synthesized Control
- S/N Ratio: >105dB (A)
- Display: LCD
- Display Contents:
  - Group
  - Channel
  - Frequency
  - Battery Level
  - Antenna A/B
  - Mute Display
  - AF Meter
  - RF Meter
  - Frequency Scan
  - Audio Level, Volume
- Controls:
  - Power ON/OFF
  - Group
  - Channel
  - Frequency
  - Mute Display
  - Key Lock
  - Volume
  - Output Attenuaiton(XLR)
  - Frequency Scan (ON/OFF)
- Audio Output Impedance: 600 Ω
- Squelch: Pilot Tone & Noise Mute
- Output Connector: 2x independent balanced XLR and two 6.3mm unbalanced Jacks
- Frequency Setting: REMOSET
- Receiving Mode: Antenna Diversity
- Bandwidth: 36MHz
- Rejection Ratio: >80dB
- Antenna Type: BNC Socket
- Antenna Booster Power: DC 12-15V / 100mA
- Power Supply: 12-15v DC / 300mA

JTS RU-G3TH Hand Held Microphone Transmitter Specifications

- Transmission method: Wireless
- Polar pattern: Cardioid
- System: Condenser
- Transmitting power: 10/50 mW
- Power supply: 2 x batt. AA size, alkaline (not supplied)
- Audio frequency range: 50-18,000 Hz
- Max. sound pressure: 140 dB
- Housing material: Plastic
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 50 mmØ x 253 mm
- Weight: 780 g
- Packing dimensions (W x H x L): 0.155 x 0.08 x 0.36 m
- Gross weight: 0.87 kg
- Net weight: 0.78 kg

JTS RU-G3TB Body Pack Transmitter Specifications

- Audio frequency range: 50-18,000 Hz
- Channels: 1
- Operating time: 12 h
- Admiss. ambient temp.: 0-40 °C
- Transmitting power: 10/50 mW
- Power supply: 2 x battery AA size, alkaline (not supplied)
- Width: 62 mm
- Height: 80 mm
- Depth: 23 mm
- Weight: 300 g
- Connections: 4-pole mini XLR

JTS CM-501 Condenser Lavalier Microphone Specifications

- Transmission method: Cable
- Polar pattern: Cardioid
- System: Electret
- Audio frequency range: 100-15,000 Hz
- Nominal Impedance: 2.2 kΩ
- Sensitivity: 3.2 mV/Pa
- Max. sound pressure: 130 dB
- Power supply: pocket transmitter IN/PT/UF series or PS-500
- Ambient temp: 0-40 °C
- Connection: 4-pole mini XLR
- Packing dimensions (W x H x L): 90 x 5 x 15 mm
- Weight: 20 g
