JTS E-7Du Dual Radio Microphone Receiver with 2x JTS E-7THD Hand Held Transmitters - Channel 70

JTS E-7Du Dual Radio Microphone Receiver with 2x JTS E-7THD Hand Held Transmitters - Channel 70 Features

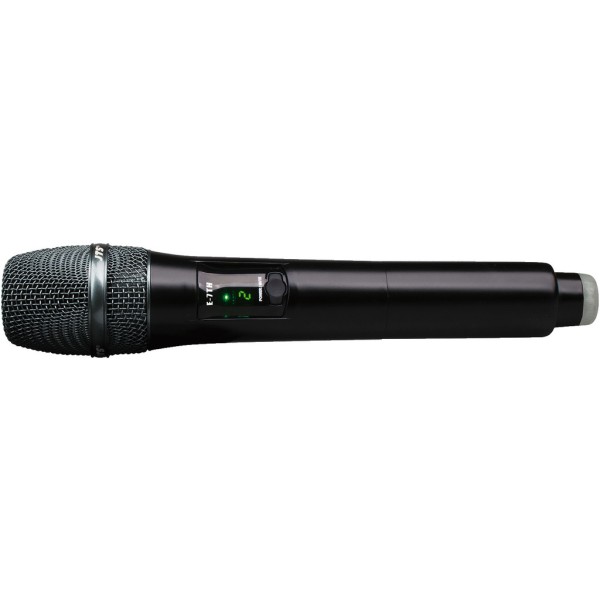

JTS E-7TBH Hand Held Transmitter Features

- 16 Selectable channels
- PLL synthesized control
- Advanced circuitry ensures stable signal transmission
- Noise mute and Tone-key squelch
- Extended dynamic range and smooth frequency response
- Internal antenna design

JTS E-7Du Dual Radio Microphone Receiver with 2x JTS E-7THD Hand Held Transmitters - Channel 70 Specifications

- Carrier Frequency Range: Channel 70, 863 - 865 MHz (License Free)

JTS E-7Du Receiver Specifications

- Frequency Preparation: PLL Synthesized Control
- S/N Ratio: >100dB
- T.H.D.: <0.6%@1KHz
- Display Contents: Channel, RF/AF Status
- Controls: Power On/Off, Channel Selecting, Audio Level
- Audio Output Level: -15dB
- AF Output Impedance: 600Ω
- Squelch: Pilot Tone & Noise Mute
- Operation Voltage: 12V 150mA (E-7R) / 12V 250mA (E-7Du)
- Output Connector: 1 6.3mmØ balanced phone jack
- Dimension (mm): 210mm(W)* 40mm(H)* 170mm(D)

JTS E-7TBH Hand Held Transmitter Specifications

- Transmission method: Wireless
- Polar pattern: Hypercardioid
- System: Condenser
- Transmitting power: 10 mW
- Power supply: 2 x batt. AA size, alkaline (not supplied)
- Audio frequency range: 50-16,000 Hz
- Admiss. ambient temp.: 0-40 °C
- Weight: 218 g
- Packing dimensions (W x H x L): 0.3 x 0.08 x 0.1 m
- Gross weight: 0.408 kg
- Net weight: 0.218 kg

Further Product Information Below

JTS E-7Du/E-7THD Data Sheet (PDF)

JTS E-7 System Manual (PDF)

- Carrier Frequency Range: Channel 70, 863 - 865 MHz (License Free)
