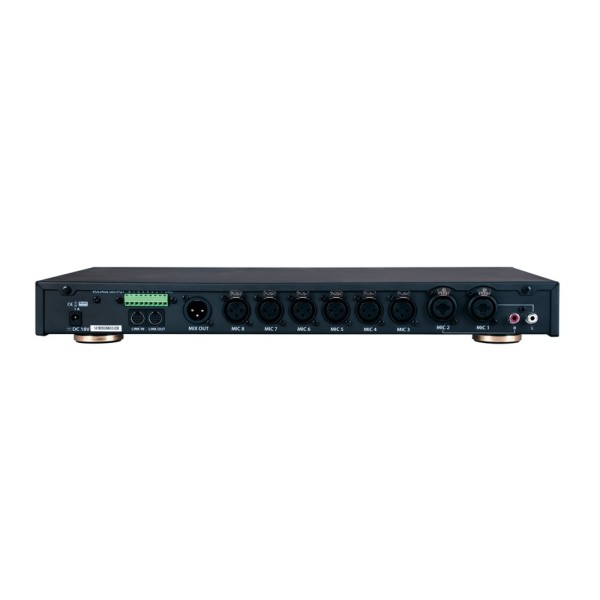

JTS CS-8 Automatic 8 Channel Microphone Mixer

JTS CS-8 Automatic 8 Channel Microphone Mixer Features

- Daisy-chain with unlimited number of the mixer
- Three operation modes: one-channel-at-a time, all active or override
- Switchable inputs accept microphones or line level devices
- Switchable output levels between mic. and line level
- Individual gain control and phantom power for each channel
- Last In stays on for continuous ambience sound
- Control voltage provided to trigger external device such as speaker switching and camera switching

JTS CS-8 Automatic 8 Channel Microphone Mixer Specifications

- Frequency response: 35Hz - 20kHz
- Net Dimension (WxHxD): 420 x 44 x 198.5mm
- Net Weight: 2.25kg
- Power Consumption: 13.5W
- S/N Ratio: >70dB
- Power Supply: 18VDC, 1A
- Type: XLR
- Phantom Power: +48v
- Output Attenuation: -50dB
- Voltage Output: +4VDC ±0.3V
- Mic: 4.7 kΩ
- Line: 20 kΩ
- Max Output Level: >17dB
- Max Gain: >70dB
- Input Attenuation: -50dB
- Mic In Attenuation: -10dB / -15dB / -20dB
