JTS Active Paddle Pack with 2x JTS UDA-49A Active Antennas

Price Each £345.03 (£414.04 Including VAT at 20%)

REF: JP104069

Quantity:

JTS Active Paddle Pack with 2x JTS UDA-49A Active Antennas

The JTS Active Paddle Pack with 2x JTS UDA-49A Active Antennas also comes with 2x 10 metre BNC cables to connect the antennas to a receiver or distributor. The JTS UDA-49A antennas are designed for receiving or transmitting signals making them ideal for extending both radio microphone reception and in ear monitoring capabilities.

Click Here for Printer Friendly Version

JTS Active Paddle Pack with 2x JTS UDA-49A Active Antennas Features

- Improved reception and a larger transmission range of 470-960 MHz
- Rejects unwanted RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility
- Reliable operation also for short-term outdoor use
- Switchable gain (3 dB/10 dB) to avoid power loss
- Remote power supply: DC 12 V/50 mA
- BNC connection
- Power supply via UHF PLL receivers of the US/IN series or the active antenna splitter UA-960
- Ideally suited for mobile applications, can be mounted onto any microphone stand with a thread of 9 mm (⅜ inch) or 16 mm (⅝ inch)

JTS Active Paddle Pack with 2x JTS UDA-49A Active Antennas Specifications

- Frequency range: 470-960 MHz
- Aperture angle: 100°
- Antenna gain: ≥ 10 dB
- Power supply: DC 12 V/50 mA, remote power supply (external power supply)
- Impedance level: 50 Ω
- Support: 9 mm (⅜ inch) or 16 mm (⅝ inch)
- Dimensions: 360 x 350 x 36 mm (sheet thickness: 1.7 mm)
- Weight: 350 g
- Connection: BNC jack

Further Product Information Below

JTS UDA-49A Data Sheet (PDF)

JTS UDA-49A Manual (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

JTS Active Paddle Pack with 2x JTS UDA-49A Active Antennas

Related products:

JTS UDA-49A Active UHF Directional Antenna

JTS UDA-49P Passive UHF Directional Antenna

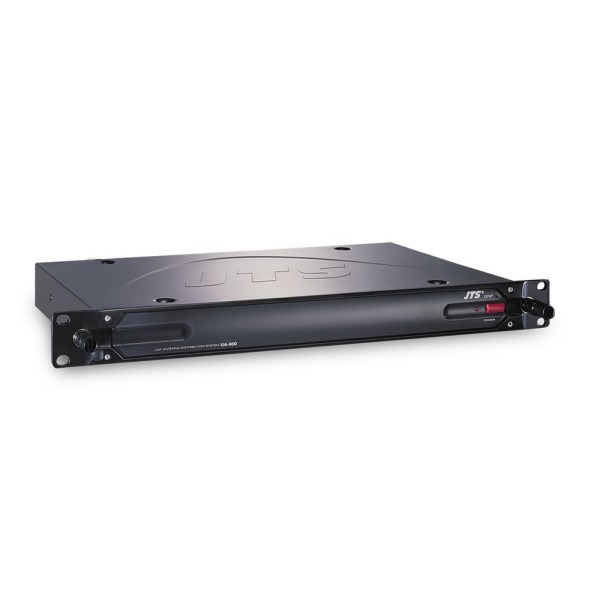

JTS UA-960 UHF Antenna Distributor

JTS UB-900i Antenna Booster

JTS UB-900ACT UHF Antenna Booster

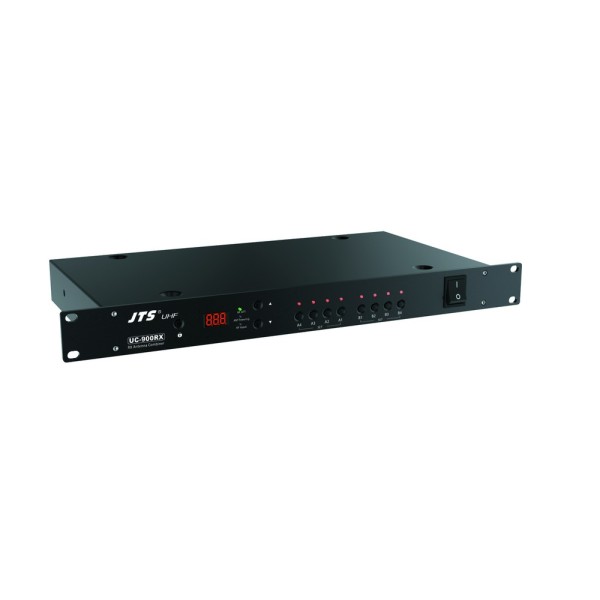

JTS UC-900RX UHF Antenna Combiner
