Global Truss F33 PL Vertical T Piece (4096-35 PL)

Name: Global Truss F33 PL Vertical T Piece (4096-35 PL)
Brand: Global Truss
SKU: 0721405346431
Price: 190.32 GBP
Availability: InStock

Price Each £158.60 (£190.32 Including VAT at 20%)

REF: JP92619

Quantity:

Global Truss F33 PL Vertical T Piece (4096-35 PL), The Global Truss F33 feature TUV Certified aluminium welding and 3mm wall thickness for a superb load handling capacity. A full range of lengths, baseplates, corners, connectors and couplers are available, making them ideal for fixed installation, shop fittings and rental applications.

Click Here for Printer Friendly Version

F33 PL Vertical T Piece (4096-35 PL) Features

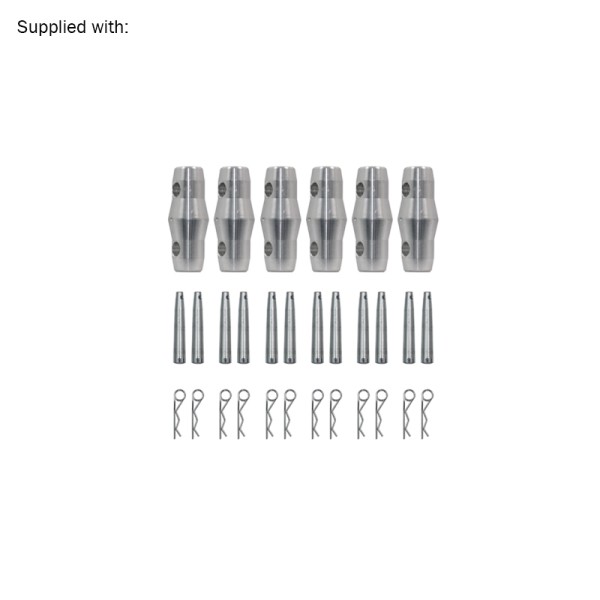

- Supplied with 6 x Conicals, 12 x Pins and 12 x R-Clips
- Prolyte H30 Truss compatible
- Superior 3mm wall thickness aluminium

F33 PL Vertical T Piece (4096-35 PL) Specifications

- Truss Diameter: 290mm
- Tube Diameter: 50mm
- Weight: 13.4kg

Further Product Information Below

Global Truss F33 PL Vertical T Piece Technical Drawing (PDF)

Global Truss F33 PL Vertical T Piece Loading Table (PDF)

Global Truss F33 PL Vertical T Piece TUV Certification (PDF)

Global Truss F33 PL Vertical T Piece Structural Report (PDF)
