DBX 234XS Stereo 2/3 Way, Mono 4-Way Crossover

DBX 234XS Stereo 2/3 Way, Mono 4-Way Crossover Features

- XLR balanced ins and outs
- Mode switches for mono 4-way or stereo 2-way/3-way operation
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high pass (low cut) filter both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- 24 dB per octave Linkwitz-Riley filters (the professional standard)
- Stereo/Mono status LEDs indicate the selected mode
- dbx 2 year parts and labor as standard
- CSA NRTL/C approved
- CE compliant

DBX 234XS Stereo 2/3 Way, Mono 4-Way Crossover Specifications

Inputs:
- Connectors: XLR
- Type: Electronically balanced/unbalanced, RF filtered
- Impedance:
  - Balanced: >50 kΩ
  - Unbalanced: >25 kΩ
- Max Input Level: >+22 dBu balanced or unbalanced

Outputs:
- Connectors: XLR
- Type: Electronically-balanaced/unbalanced, RF filtered
- Impedance:
  - Balanced: 60 Ω
  - Unbalanced: 300 Ω
- Max Output Level: >+20 dBu balanced/unbalanced into 600 Ω or greater

Crossover Frequencies:
- Stereo Mode:
  - Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  - Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  - Mid/High 450Hz to 9.6kHz (x10 setting)
- Mono Mode:
  - Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  - Low-Mid/High-Mid: 450 Hz to 9.6 kHz; High-Mid/High: 450 Hz to 9.6 kHz
- Filter type: Linkwitz-Riley, 24 dB/octave, state-variable

Function Switches:
- Front Panel:
  - Low Cut: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
  - Phase Invert: Inverts the phase at the output, one switch per output

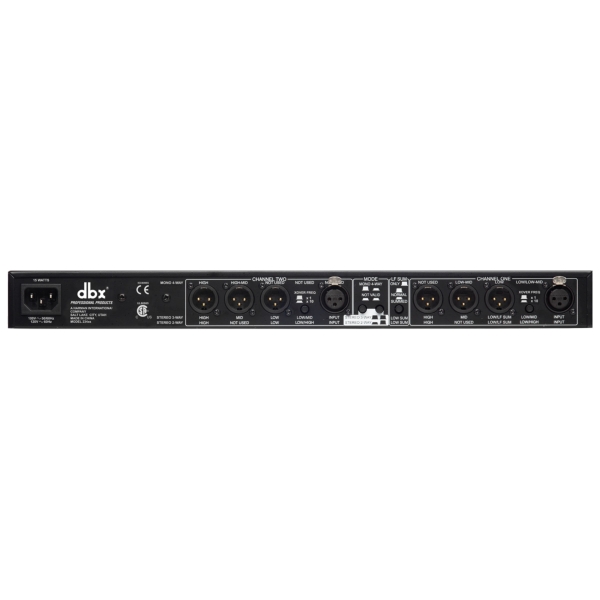

- Rear Panel:
  - Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel
  - Mode: Selects stereo/mono and 2/3/4-way operation
  - LF sum: Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2's low output phase invert LED to indicate that this output is not operational in the LF sum mode

Indicators:
- Stereo Operation: Green LED
- Mono Operation: Yellow LED
- Low Cut: Red LED per channel
- x10: Green LED per channel
- Phase Invert: Red LED per output (3 per channel)

System Performance:
- Bandwidth: 20Hz to 20kHz, ±0.5 dB
- Frequency Response: < 3Hz to > 90kHz, +0/-3 dB
- THD + Noise: <0.004% at +4 dBu 1kHz, <0.04% at +20 dBu 1 kHz
- Interchannel Crosstalk: <-80 dB, 20Hz to 20kHz
- CMRR: >40 dB, typically >55 dB at 1kHz
- Signal-to-Noise (+4 dBu, 22kHz measurement bandwidth):
- Stereo Mode:
  - Low Output: >94 dB
  - Mid Output: >93 dB
  - High Output: >90 dB
- Mono Mode:
  - Low, Low/Mid Output: >94 dB
  - High, Mid/High Output: >92 dB
  - High Output: >88 dB

Electrical:
- Operating Voltage: 100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ
- Power consumption: 15W
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Power Connector: IEC receptacle

Physical:
- Dimensions (W x H x D): 483 x 44 x 175 mm / 19 x 1.75 x 6.9 inches
- Weight: 1.8 kg / 4.0 lbs
