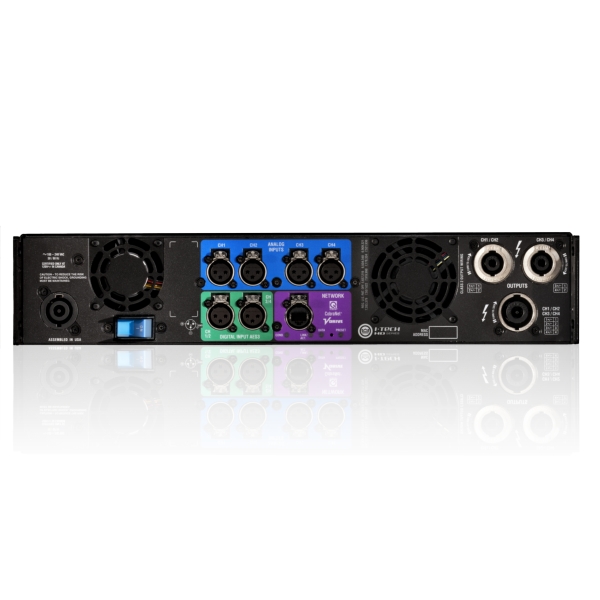

Crown I-Tech 4x3500HD Drive Core Power Amplifier with Speakon outputs, 4x2400W @ 4 Ohms or 70V / 100V Line

Name: Crown I-Tech 4x3500HD Drive Core Power Amplifier with Speakon outputs, 4x2400W @ 4 Ohms or 70V / 100V Line
Brand: Crown
Price: 8335.7 GBP
Availability: InStock

Price Each £6,946.42 (£8,335.70 Including VAT at 20%)

REF: JP8094

Quantity:

Crown I-Tech 4x3500HD Drive Core Power Amplifier with Speakon outputs, 4x2400W @ 4 Ohms or 70V / 100V Line

The Crown I-Tech 4x3500HD Drive Core Power Amplifier stands only 2U high, the slight stature of the Crown I-Tech 4 x 3500HD Drive Core belies the leading-edge technology within. A perfect example is the bss Omnidrive HD DsP engine. This integrated DSP is not only a breakthrough in the amplifier industry, but outperforms many of the best stand-alone DSP loudspeaker processors in the world. With the latest programmable studio-grade 32-bit Sharc processors with enhanced SIMD architecture and a proprietary D/A output filter for improved signal-to-noise at least 6 dB quieter than outboard DSP, it's easy to see how the decade-long partnership between Crown and BSS continues to go beyond "what's possible" and into "what's next."

Click Here for Printer Friendly Version

Crown I-Tech 4x3500HD Drive Core Power Amplifier Features

- True Power Density - Crown amplifiers run louder, longer, and with higher fidelity than competing amplifier designs. The I-Tech 4x3500HD is no exception, with four channels of patented Class-I technology packed into a compact 2U design
- DriveCore - A culmination of nearly two decades of R&D in PWM and switch-mode amplification, DriveCore is a Crown exclusive that combines hundreds of parts into one chip the size of a your fingertip, resulting in more efficiencies and unsurpassed reliability
- 4 In/4 Out - each amplifier is capable of independently driving up to four separate zones with a full suite of processing options on each channel
- OmniDrive HD - the latest programmable studio-grade 32-bit Sharc processors with enhanced SIMD architecture and a proprietary D/A output filter for improved signal-to-noise at least 6 dB quieter than outboard DSP
- Universal power supply with Power Factor Conversion technology
- Greater than 90% efficiency at full power
- Five year, no fault, fully transferable warranty

Crown I-Tech 4x3500HD Drive Core Power Amplifier Specifications

- Channels: 4
- Sensitivity: Adjustable in 0.1V increments from 1.28V to 8V
- Signal-to-Noise Ratio (below rated power 20Hz to 20kHz, A-Weighted): > -112dB
- Total Harmonic Distortion (THD): 0.35%
- Damping Factor (10 Hz to 100 Hz): >5000
- Frequency Response (at 1W into 4/8 Ω): ± 0.25dB
- Crosstalk (below rated power 20Hz to 1kHz): > 80dB
- Common Mode Rejection (20Hz to 1kHz): > 80dB Typical
- Maximum Input Level (before input compression): +15dBu or +21dBu
- Load Impedance:
  - Stereo: 1/2/4/8/16/70V/100V
  - Bridge: 2/4/8/16/70V/100V
- Power (RMS):
  - 2Ω: 2100W
  - 4Ω: 2400W
  - 8Ω: 1900W
  - 4Ω bridged: 4200W
  - 2Ω bridged: 4800W
  - 70V: 2100W
  - 100V: 2300W
- Dimensions (HxWxD): 8.9cm x 48.3cm x 43.1cm (3.5" x 19" x 16.95")
- Net Weight: 29lbs (13.2kg)
- Net Shipping Weight: 36lbs (16.3kg)

Further Product Information Below

Crown IT4x3500-HD (Speakon) Manual (PDF)

Crown IT4x3500-HD (Speakon) Data Sheet (PDF)

Crown IT4x3500-HD (Speakon) Brochure (PDF)
