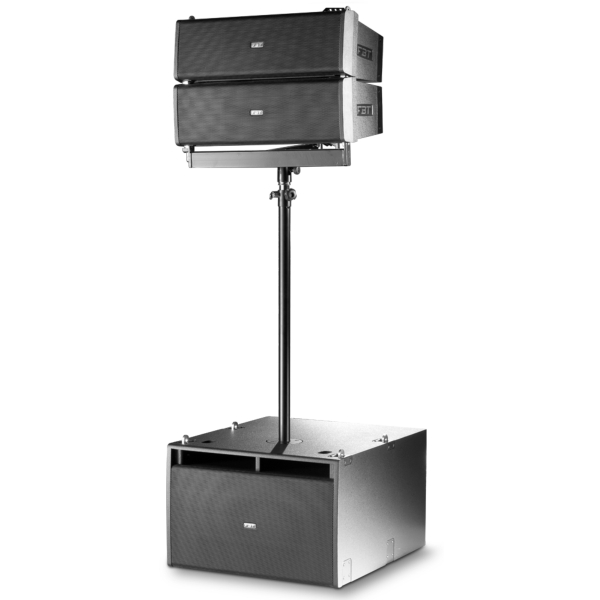

FBT Mitus 206LA Active Vertical Array, 900W
The FBT Mitus 206LA Active Vertical Array is an active two-way compact line line array system featuring 2x 6.5 inch B&C neodymium woofers with a 1.7 inch voice coil and 1.4 inch exit B&C neodymium driver with 2.5 inch voice coil. All in a Polypropylene gas-injected enclosure.
The modularity of the FBT MITUS 206LA makes it extremely flexible for a wide range of applications, from a small 2 cabinet P.A. system to an elaborate line array system consisting of up to 12 MITUS 206LAcabinets along with multiple FBT MITUS 212FSA subs for large concert events.
The FBT MITUS 206LA shall meet the following performance criteria: Frequency response of 68Hz to 20kHz, Maximum SPLof 134dB, class D amplifier module that provides 600W RMS to the LF and 300W RMS to the HF.
The waveguide, optimized by BEM finite element simulation, offers 100° horizontal dispersion; engineered to be perfectly integrated with the HF compression driver it allows the dispersion of a flat acoustic wave to over 18kHz.
The MITUS 206LA cabinets coupling hardware is internally integrated and allows the suspension of 12 arrays with a 10:1 safety factor.
The front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.
The FBT MITUS 206LA provides a wide range of hardware accessories for flying and ground stacked configurations.
