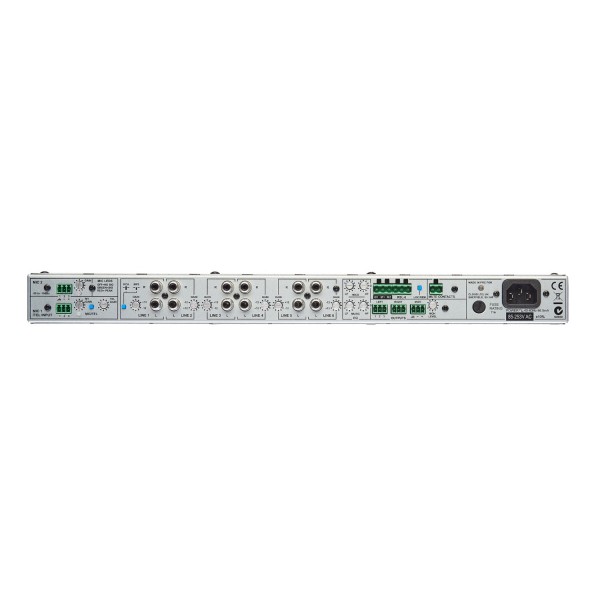

Cloud CX261 One Zone Mixer with MP3 and Music on Hold features

Cloud CX261 One Zone Mixer with MP3 and Music on Hold Features

- Six (unbalanced) stereo line inputs with individual gain control
- Two electronically-balanced mic inputs
- Front panel control of music source/level and mic level
- Front panel input (3.5mm jack) for MP3 player
- HF & LF EQ adjustment for music and mic inputs
- MIC 1 input configurable as transformer-isolated line input
- MIC 1 priority over MIC 2 (selectable)
- Short-to-ground access connector
- Selectable LINE 6 priority with choice of release times
- Music mute control input (NO or NC)
- Compatible with standard Cloud remote control panels
- Electronically-balanced stereo main output
- Transformer-isolated mono auxiliary output
- Aux output source selection (internal jumper)
- Optional Bose EQ cards available
- 1U 19 inch rack mounting unit

Cloud CX261 One Zone Mixer with MP3 and Music on Hold Specifications

Line inputs
- Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
- Distortion: <0.05% typical, 1 kHz
- Sensitivity: 0.775 V (0 dBu), ±12 dB
- Input Gain Control Range: 24 dB
- Input Impedance: 48 kohms
- Headroom: >20 dB
- Noise: <-88 dB rel 0 dBu (typical); A-weighted, rms
- Equalisation: LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10kHz

MP3 input
- Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
- Distortion: <0.05% @ 1 kHz
- Sensitivity: -20 dBu to +4 dBu
- Gain Adjustment: 24 dB range

Microphone inputs
- Frequency Response: -3 dB @ 100 Hz (filter), ±0.5 dB @ 20 kHz
- Distortion: <0.05%, 20 Hz to 22 kHz
- Gain: 40 dB range
- Sensitivity: -10 dBu to -50 dBu
- Input Impedance: >2 kohms (balanced)
- Common Mode Rejection: 1 kHz, >70 dB
- Headroom: >20 dB
- Noise: <-125 dB EIN, A-weighted, 150 ohms
- Equalisation: LF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz

Tel input
- Frequency Response: -3 dB @ 100 Hz (filter); <-0.5 dB @ 20 kHz
- Distortion: <0.05%, 200 Hz to 20 kHz
- Sensitivity: -20 dBu to + 4 dBu
- Headroom: >20 dB

Outputs
- Output level (nominal)
  - Main: 0 dBu
  - Aux/MOH: -6 dBu
- Minimum load impedance
  - Main: 1.2 kohms
  - Aux/MOH: 600 ohms
- Maximum output level
  - Main: +20 dBu
  - Aux/MOH: 0 dBu

Physical & Dimensions
- Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm
- Shipping Dimensions (w x h x d): 560 mm x 140 mm x 290 mm
- Weight: 2.13 kg
- Shipping Weight: 3.15 kg
- Power input: 85 V to 253 V AC, 50/60 Hz
- Current consumption: 46.5 mA at 240 V
- Fuse Rating: 1A
- Fuse Type: T1A, 20 x 5 mm
