Cloud CDR-1 Surface Mount Remote Control Module for DCM-1 and DCM-1E

Name: Cloud CDR-1 Surface Mount Remote Control Module for DCM-1 and DCM-1E
Brand: Cloud
SKU: 0632181170731
Price: 141.94 GBP
Availability: InStock

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Each £118.28 (£141.94 Including VAT at 20%)

REF: JP33044

Options Available Please Select From Below:

Choice of Colour

Quantity:

Cloud CDR-1 Surface Mount Remote Control Modulefor DCM-1 and DCM-1E

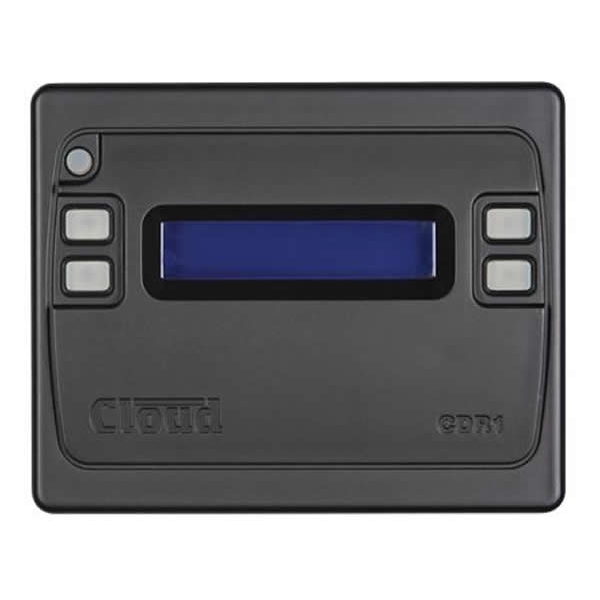

The Cloud CDR-1 Surface Mount Remote Control Modulefor DCM-1 and DCM-1E is the surface-mount version of wall remote control for use with the DCM-1 and DCM1e Digital Control Mixer. The CDR-1 is fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of system in addition to the DCM-1's front panel.
A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.
Please Note: A single CDR-1 CANNOT control Multipul Zones, this is achived via the RS232 or Ethernet Brouser GUI (DCM-1e)

Click Here for Printer Friendly Version

Cloud CDR-1 Surface Mount Remote Control Modulefor DCM-1 and DCM-1E Features

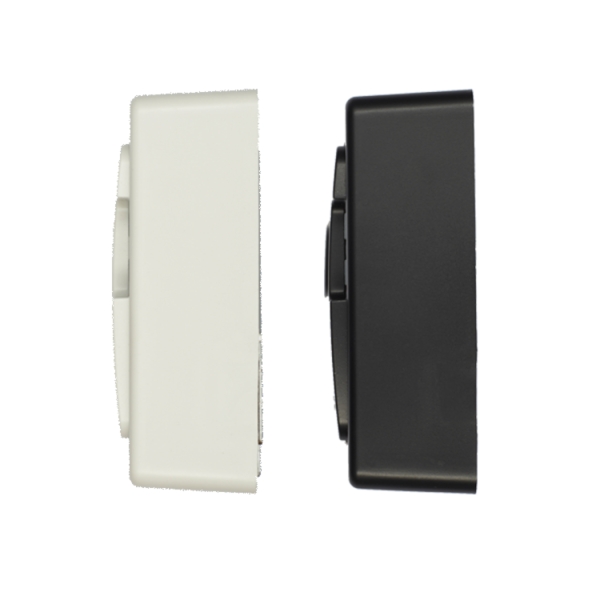

- Two colour Options available: CDR-1W (White) and CDR-1B (Black)
- Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
- Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
- Can be interconnected using a wide choice of wiring topologies
- Choice of two mounting styles to suit installation
- Backlit 2-row x 16 character dot matrix alphanumeric display
- User accessible functions:
  - Source selection
  - Level control
  - Group enable/disable
- Engineer mode functions (password enabled):
  - Local zone EQ adjustment
- Installer mode (Enabled by internal jumper):
  - Zone assignment
  - Password setting
  - Display adjustment
  - Inactivity time (time for which display backlight remains lit after a button is pressed)

Cloud CDR-1 Surface Mount Remote Control Modulefor DCM-1 and DCM-1E Specifications

A detailed specification for the Cloud CDR-1 Remote Control Module can be found in the Manual or Datasheet in the Resources tab above.

Further Product Information Below

Cloud CDR-1 Manual (PDF)

Cloud CDR-1 Data Sheet (PDF)

Please Note: A single CDR-1 CANNOT control Multipul Zones, this is achived via the RS232 or Ethernet Brouser GUI (DCM-1e)

Cloud CDR-1F Flush Mount Remote for DCM-1 and DCM-1E Compatibility

- Cloud DCM-1
- Cloud DCM-1e
