JBL Control 47LP 6.5-Inch 2-Way Low Profile Ceiling Speaker, 75W @ 8 Ohms or 70V/100V Line

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Per Pair £539.24 (£647.09 Including VAT at 20%)

REF: JP3154

Quantity:

JBL Control 47LP 6.5-Inch 2-Way Low Profile Ceiling Speaker, 75W @ 8 Ohms or 70V/100V Line

The JBL Control 47LP 6.5-Inch 2-Way Low Profile Ceiling Speaker is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). Built on the same platform as the Control 47C/T. The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Click Here for Printer Friendly Version

JBL Control 47LP 6.5-Inch 2-Way Low Profile Ceiling Speaker Features

- Shallow Backcan Version of 47C/T for locations with limited clearance
- Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
- Proprietary Conical RBI Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Elegant design fits any décor

JBL Control 47LP 6.5-Inch 2-Way Low Profile Ceiling Speaker Specifications

- Frequency Range: 68 Hz - 20 kHz
- Power Rating: IEC System Long-Term Ratings (low-Z direct):
  - 150 Watts Continuous Program Power
  - 75 Watts Continuous Pink Noise (300W peak), hrs
- Sensitivity: 91 dB (1kHz - 16 kHz)
- Transformer Taps: 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
- Coverage Angle: 120° conical, constant directivity
- Impedance: 8 ohms (in bypass mode)
- Drivers:
  - LF Driver: 165 mm (6.5-inch)
  - HF Driver: 25 mm (1-inch)

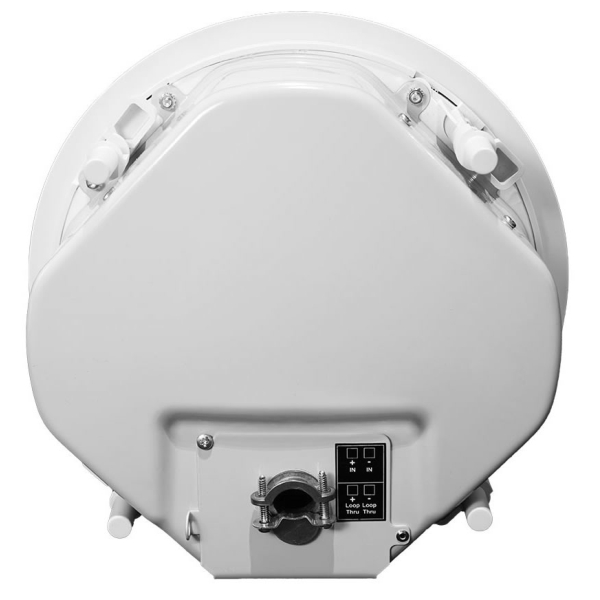

- Input Connectors: Two removeable locking 2-pin connectors with screwdown terminals.
- Dimensions (Diameter x Depth): 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6-inch)
- Maximum SPL (1m):
  - 110 dB (low-impedance, 116 dB peak)
  - 109 dB (top 70V/100V tap)
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (included "blind-mount")
- Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
- Ceiling Cutout Size: 282 mm Diameter (11.1-inch) (cardboard cutout template included)
- Optional Accessories: MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
- Plenum Usage: Yes, backcan included

Further Product Information Below

JBL Control 47LP Data Sheet (PDF)

JBL 40 Series Manual (PDF)

JBL 40 Series Brochure (PDF)

JBL Control 47LP 6.5-Inch 2-Way Low Profile Ceiling Speaker Supplied With

- JBL Control 47LP ceiling speaker
- C-rings
- Tile rails
- Paint shield
- Cutout template
- Grille
