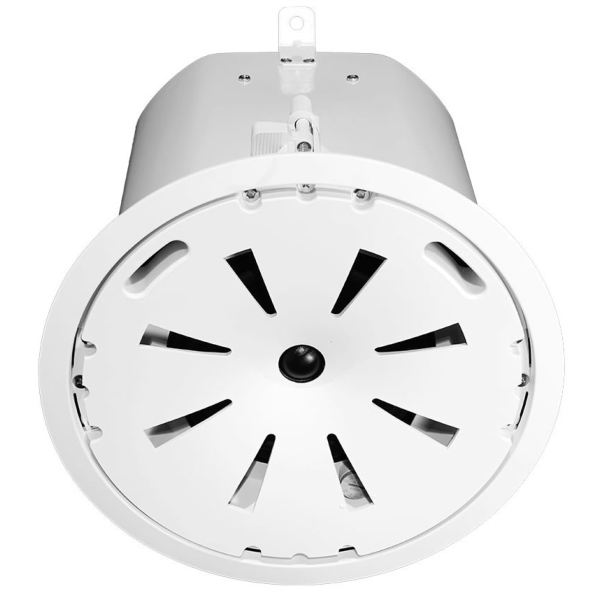

JBL Control 47C/T 6.5-Inch 2-Way Consistent Coverage Extended Bass Ceiling Speaker, 75W @ 8 Ohms or 70V/100V Line

JBL Control 47C/T 6.5-Inch 2-Way Consistent Coverage Extended Bass Ceiling Speaker Features

- Proprietary Conical RBI Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Large Backcan for Bass Response to 55 Hz
- Elegant design fits any décor

JBL Control 47C/T 6.5-Inch 2-Way Consistent Coverage Extended Bass Ceiling Speaker Specifications

- Frequency Range: 55 Hz - 20 kHz
- Power Rating: IEC System Long-Term Ratings (low-Z direct):
  - 150 Watts Continuous Program Power
  - 75 Watts Continuous Pink Noise (300W peak), hrs
- Sensitivity: 91 dB (1kHz - 16 kHz)
- Transformer Taps: 60W, 30W, 15W (7.5W at 70V only)
- Coverage Angle: 120° conical, constant directivity
- Impedance: 8 ohms (in bypass mode)
- Drivers:
  - LF Driver: 165 mm (6.5-inch)
  - HF Driver: 25 mm (1-inch)
- Input Connectors: Two removeable locking 2-pin connectors with screwdown terminals.
- Suspension Tabs: Three, on top panel
- Dimensions (Diameter x Depth): 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2-inch)
- Maximum SPL (1m):
  - 110 dB (low-impedance, 116 dB peak)
  - 109 dB (top 70V/100V tap)
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (included "blind-mount")
- Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
- Ceiling Cutout Size: 282 mm Diameter (11.1-inch) (cardboard cutout template included)
- Optional Accessories: MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
- Plenum Usage: Yes, backcan included

Further Product Information Below

JBL Control 47C/T Data Sheet (PDF)

JBL 40 Series Manual (PDF)

JBL 40 Series Brochure (PDF)

JBL Control 47C/T 6.5-Inch 2-Way Consistent Coverage Extended Bass Ceiling Speaker Supplied With

- JBL Control 47C/T ceiling speaker
- C-rings
- Tile rails
- Paint shield
- Cutout template
- Grille
