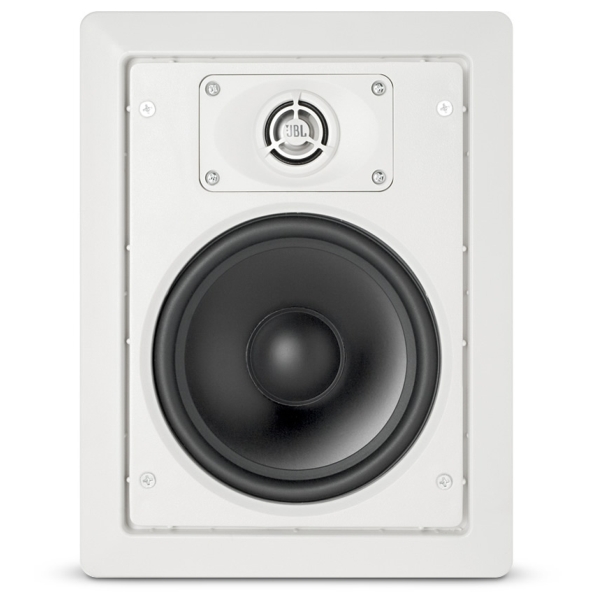

JBL Control 126W 6.5-Inch 2-Way Premium In-Wall Speaker (Pair), 100W @ 8 Ohms - White

JBL Control 126W 6.5-Inch 2-Way Premium In-Wall Speaker Features

- Components:
  - 165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
  - 25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter
- High-slope crossover for natural midrange sound
- Extended bandwidth performance of 38 Hz - 20 kHz
- 50 W continuous (100 W program, 200 W peak) power handling (126 W)

JBL Control 126W 6.5-Inch 2-Way Premium In-Wall Speaker Specifications

- Frequency Range: 38 Hz - 20 kHz (-10 dB)
- Power Rating: 200 W Peak 100 W Continuous Program Power 50 W Continuous Pink Noise
- Sensitivity: 88 dB SPL
- Coverage: 180°H x 160°V (ave. 1 kHz - 8 kHz)
- Impedance: 8 ohms
- Drivers:
  - LF: 165 mm (6.5 in) polymer-coated aluminum cone
  - HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
- Input Connectors: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
- Crossover Network: 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
- Optimum Air Cavity Behind Speaker: 20 to 40 liters (0.7 to 1.4 cu ft)
- Outside Dimensions (H x W x D): 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
- Maximum Wall Thickness: 32 mm (1.25 in)
- Cutout Size (H x W): 246 x 181 mm (9.7 x 7.2 in)
- Net Weight (each): 2.1 kg (4.5 lb)
- Shipping Weight (ea): 126 W: 4.8 kg (10.5 lb)
- Optional Accessories: WB6 Rough-In Frame for newconstruction installation to wallstuds

Further Product Information Below

JBL Control 126W Data Sheet (PDF)

JBL Control 100 Series Manual (PDF)

JBL Control 126W 6.5-Inch 2-Way Premium In-Wall Speaker Supplied With

- 2x JBL Control 126W Speakers
- Cutout template
- Paint shield
