Nexo Geo M620 6.5-Inch Full Range Passive Speaker, 450W @ 8 Ohms - White

Nexo Geo M620 6.5-Inch Full Range Passive Speaker, 450W @ 8 Ohms - White

The Nexo Geo M620 6.5-Inch Full Range Passive Speaker is a full-range unit for stand-alone, curved array or line array application. Extremely compact in size (191 x 373 x 260 mm), the M620 module punches well above its weight of less than 10 kgs. Using a NEXO-designed long-excursion high-efficiency 6.5-inch LF driver and a 1-inch throat driver on a BEA/FEA optimised HR Wavesource, the M620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of 127dB. HF dispersion is 80° or 120° horizontal, with 20° vertical coverage,0° to 20° splay when arrayed. Using NEXO's HRW patented waveguide for optimum HF coupling between elements, the M620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.

Drawing on more than 30 years' experience at the forefront of acoustic design, Geo M6 utilises a number of patented technologies to achieve exceptional levels of sonic performance.And mechanical performance is similarly impressive. All structural forces acting on a Geo M6 cluster are born by the groundbreaking NEXOSkeleton rigging system, rather than the cabinets. Fully T?V certified, any configuration of cabinets can be safety-checked, using NEXO NS-1 system configuration software.GEO M6 utilises NEXO's patented Hyperbolic Reflective Wavesource (HRWTM) to control acoustic energy by creating a virtual wavesource 'outside the box', resulting in optimal wavesource coupling without destructive interference.
System flexibility can be increased by adding flanges to the HF waveguide exit, changing the standard 80 ? acoustic coverage across the horizontal plane to 120 ?.
A Directivity Phase Device (DPD) on each cone driver extends the upper frequency limit for file source coupling between adjacent speakers. 6.5" drivers coherently couple as if there were twice as many 3.25" cones mounted at half the physical distance. Internal faces of the port tube are profiled to ensure smooth air flow, reducing turbulence to increase low frequency efficiency and linearity at high power.
All structural forces acting on a Geo M6 cluster are born by the groundbreaking NEXOSkeleton rigging system, rather than the cabinets. Fully T?V certified, any configuration of cabinets can be safety-checked, using NEXO NS-1 system configuration software.

GEO M620 main and M6B bass extension cabinets can be flown in the same array to create a compact, powerful and discreet system, ideal for installation in small theatres and conference halls.

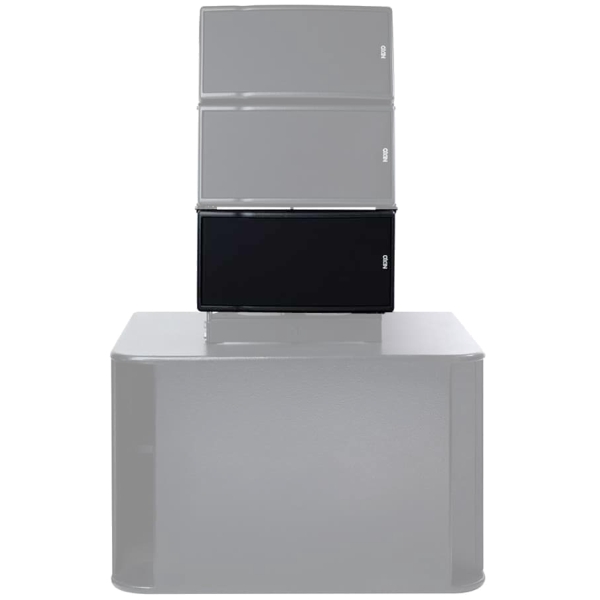

Pole-mounting a pair of Geo M620 Main cabinets on a NEXO LS600 subbass cabinet quickly creates a high-output, full range system.

The combination of high power and low visual impact makes Geo M6 the perfect choice for use in live events. A comprehensive range of mobile rigging accessories makes it easy for contractors and rental companies to achieve exceptional sonic performance without impinging upon the production design.

NEXO has built a global reputation for the quality and performance of its concert line array systems. Now Geo M6 brings NEXO technology to installed sound applications, delivering the key benefits of uncompromised full range sound and consistent SPL coverage.
