Nexo Geo S1210 2-Way Passive 10 Degree Tangential Array Speaker

The Nexo Geo S1210 2-Way Passive 10° Tangential Array Speaker is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single 12-inch loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A very narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional “tight-pack” pattern control in the non-coupled plane.

Click Here for Printer Friendly Version

Nexo Geo S1210 2-Way Passive 10 Degree Tangential Array Speaker Features

- Coherent Wave Propagation from NEXO’s Advanced GEO Hyperbolic Wavesource
- Advanced Constant Velocity Profile Output from 5.1° Wavefront Curvature
- Integral Rigging System with Angles from 0.20° to 10°
- NS-1 Configurable, EtherSoundTM (Network)
- Bottom-Line Engineering for Theatre to Arena-Sized Fixed & Mobile Applications

Nexo Geo S1210 2-Way Passive 10 Degree Tangential Array Speaker Specifications

- Frequency response: 53Hz – 19kHz ±3dB
- Usable range @-6dB: 50Hz – 20kHz
- Sensitivity: 103dB SPL nominal
- Peak SPL @ 1m: Configuration dependent
- Dispersion: Coupling Plane: Configuration dependent, Non-Coupling Plane: Configurable 80° / 120°
- Crossover frequency: LF- HF: 1.1kHz Passive or Active (internally configurable)
- Nominal impedance: 16Ω
- Drivers:
  - HF: 1x 3-inch voice coil, 1.4-inch throat 16Ω driver on a 5° hyperboloid reflective wavesource
  - MF/LF (front-firing): 1x 12-inch (30cm) high excursion neodymium 16Ω driver.
- Shape: 10° Trapezoid
- Connectors: 2x NL4MP SPEAKON 4-pole (In & Through)
- Construction: Baltic Birch ply with structured black coating
- Front finish: Molded dark grey metal grill
- Flying points: Two plates connecting with external accessories. Intercabinet angle adjustments = 0.2°, 0.315°, 0.5°, 0.8°; 1.25°, 2.0°, 3.15°, 5°, 6.3°, 8.0°, 10.0° (logarithmic steps)

Recommended Amplifiers:
- 3x GEO S1210 in parallel:
  - HF: 875 to 1550W into 4Ω
  - LF: 1750 to 3100W into 4Ω
- 4x GEO S1210 in parallel:
  - HF: 1000 to 1800W into 4Ω
  - LF: 2000 to 3600W into 4Ω
- 6x GEO S1210 in parallel:
  - HF: 1650 to 3000W into 2Ω
  - LF: 3300 to 6000W into 2Ω

Physical:
- Dimensions (W x H x D): 674 x 344 x 378 mm excluding accessories
- Rigging axis to axis height: 345mm
- Weight: 28.05 kg including array assembly system

Further Product Information Below

Nexo Geo S12 Series Manual

Nexo Geo S12 Series Data Sheet

Nexo Geo S12 Series Brochure

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Nexo Geo S1210 2-Way Passive 10 Degree Tangential Array Speaker

Related products:

Nexo GPT-BUMPER Touring Bumper for Nexo GEO S1210 and 1230 Line Arrays

Nexo GPT-GSTK Ground Stack Base for Nexo GEO S1210 and S1230

Nexo GPT-TLB Link Bar for Nexo GEO S1210 and S1230

Nexo GPT-XBOW Mini Crossbow for Nexo GEO S1210 and S1230

Nexo VNI-ABRK Horizontal Mounting Plate for Nexo GEO S1210 and S1230

Nexo VNI-LBRK Long Mounting Plate for Nexo GEO S1210 and S1230

Nexo VNI-UBRK12 Fixed Installation U Bracket for Nexo GEO S1210 and S1230

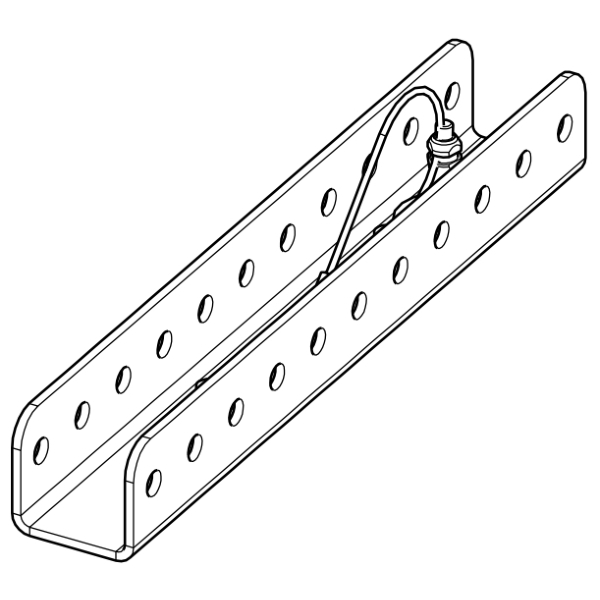

Nexo VNT-TTC Truss Clamp Bracket for Nexo GEO S1210 and S1230
