Nexo TD Controller 6-Way Sense Connector

Name: Nexo TD Controller 6-Way Sense Connector
Brand: Nexo
SKU: 3760133806036
Price: 27.67 GBP
Availability: InStock

As NEXO Authorised UK Main Dealers we are able to offer you the Best Price ! So give us a call or Email to see what we can do.

Price Each £23.06 (£27.67 Including VAT at 20%)

REF: JP18004

Quantity:

Description
Specifications

Nexo TD Controller 6-Way Sense Connector

The Nexo TD Controller 6-Way Sense Connector is a 6-way inline female connector that fits the TD8, TD10 & TD15 controller plug.

Click Here for Printer Friendly Version

Nexo TD Controller 6-Way Sense Connector Specifications

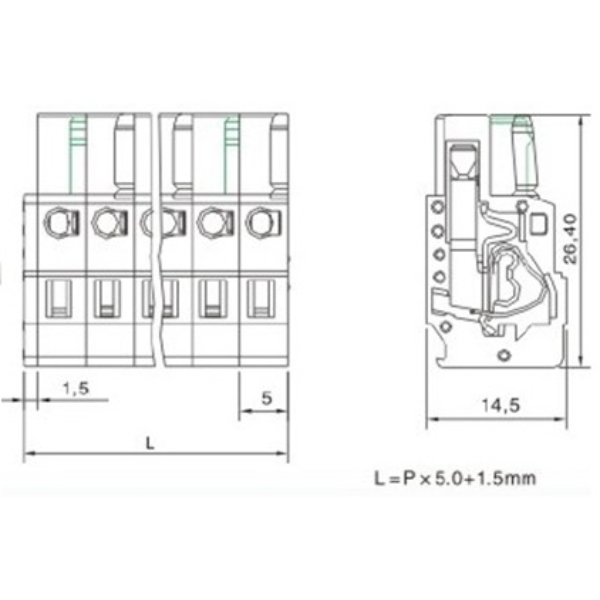

- Model Number: SPNSEV5F, Nexo TD Controller Sense Connector 6 Way
- Pitch: 5.0mm/0.197in
- Wire range: 0.2-2.5mm?; 24-12AWG
- Rated voltage: 250V(IEC); 300V(UL)
- Rated current: 16A(IEC); 15A(UL)
- Connection Method: Spring Cage Clamp
- Housing: Nylon PA66(UL94, V-0 or V-2)
- Contact metal: Copper alloy, Tin plated
- Color: Light gray
- Poles: 2-24poles
- Stripping length: 8-9mm/0.33in
- Approval: RoHS Compliant
