Clever Acoustics CS 56F 5-Inch Coaxial Ceiling Speaker with Fire Dome, 3W @ 70V / 100V Line

Name: Clever Acoustics CS 56F 5-Inch Coaxial Ceiling Speaker with Fire Dome, 3W @ 70V / 100V Line
Brand: Clever Acoustics
SKU: 0723175521179
Price: 30.95 GBP
Availability: InStock

Price Each £25.79 (£30.95 Including VAT at 20%)

REF: JP11311

Quantity:

Clever Acoustics CS 56F 5-Inch Coaxial Ceiling Speaker with Fire Dome, 3W @ 70V / 100V Line

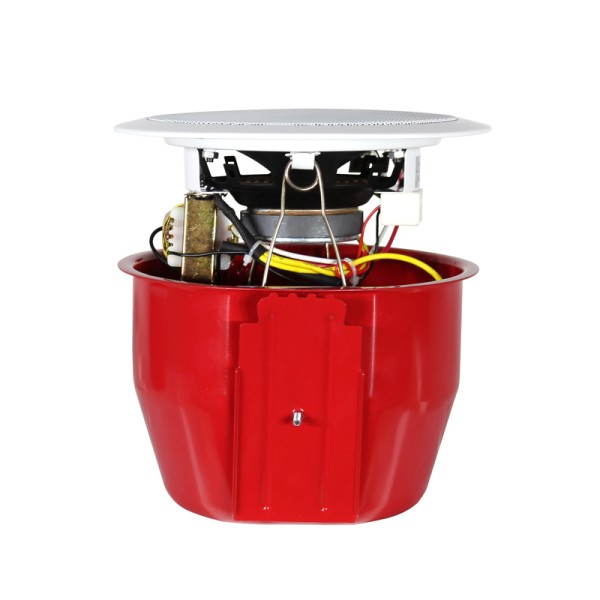

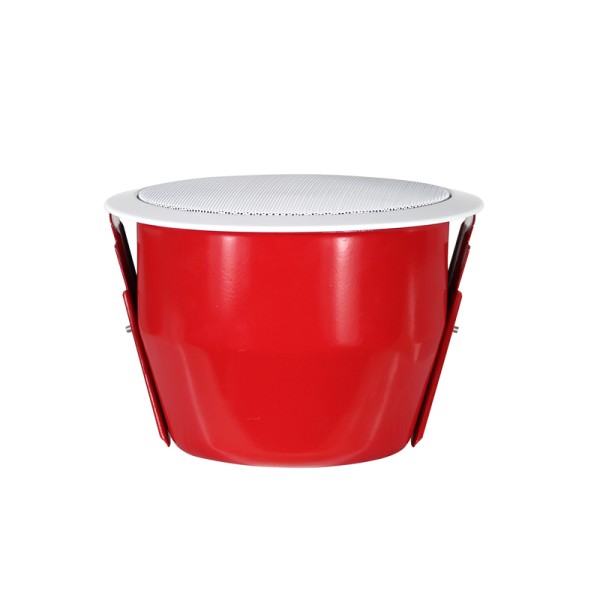

The Clever Acoustics CS 56F 5-Inch Coaxial Ceiling Speaker with Fire Dome is a ceiling mounted loudspeaker ideal for the playback of music and speech reinforcement where audio quality is important. The CS F series utilise a coaxial design complete with HF tweeter for crystal clear high tones. The loudspeakers feature a full fire dome and ceramic connector block suitable for installations requiring fire resistant specification.(During a fire, the ceiling cavity can allow fire or smoke to spread throughout a building. To inhibit fire entering the cavity via the ceiling loudspeaker a suitable product should chosen for installation such as the Clever Acoustics CS 56F.)

Click Here for Printer Friendly Version

Clever Acoustics CS 56F 5-Inch Coaxial Ceiling Speaker with Fire Dome Features

- 3 year warranty
- Coaxial, 2-way design delivers wide frequency response
- Multiple power taps
- Ceramic terminal block connection
- Metal grille, baffle and fire dome
- Spring clip mounting with "dome first" fast installation system
- Supplied with template to aid installation

Clever Acoustics CS 56F 5-Inch Coaxial Ceiling Speaker with Fire Dome Specifications

- Input: 100V, 70V
- Power taps:
  - 100V: 0.38W, 0.75W, 1.5W, 3W, 6W
  - 70V: 0.19W, 0.38W, 0.75W, 1.5W, 3W
- Impedance: 26 KΩ, 13 KΩ, 6.7 KΩ, 3.3 KΩ, 1.7 KΩ
- Sensitivity (1W/1m): 92 dB (±3 dB)
- Maximum SPL (Rated W/1m): 100 dB
- Frequency response: 130 Hz - 15 kHz
- Drivers:
  - LF: 5-inch
  - HF: 1.5-inch
- Connections: Ceramic terminal block
- Cutout: 157 mmØ
- Mounting depth: 115 mm

Physical:
- Dimensions (W x H x D): 180 x 125 x 180 mm
- Weight: 1.2 kg

Further Product Information Below

Clever Acoustics CS 56F Manual (PDF)

Clever Acoustics CS 56F CE Certification (PDF)
