JBL Control 26C 6.5-Inch Coaxial Ceiling Speaker (Pair), 75W @ 16 Ohms - White

Price Per Pair £348.48 (£418.18 Including VAT at 20%)

REF: JP3040

Quantity:

JBL Control 26C 6.5-Inch Coaxial Ceiling Speaker (Pair), 75W @ 16 Ohms - White

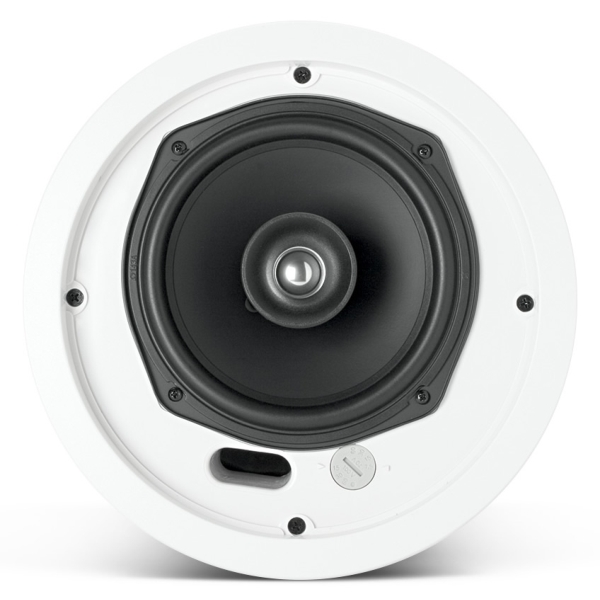

The JBL Control 26C 6.5-Inch Coaxial Ceiling Speaker is a powerhouse ceiling speaker containing a coaxially mounted 6.5-inch woofer and ⅜-inch titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

Click Here for Printer Friendly Version

JBL Control 26C 6.5-Inch Coaxial Ceiling Speaker Features

- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- JBL's exclusive SonicGuard overload protection allows higher operational levels and improved system reliability
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

JBL Control 26C 6.5-Inch Coaxial Ceiling Speaker Specifications

- Frequency Range: 75 Hz - 20 kHz
- Power Rating: IEC System Long-Term Ratings (low-Z direct):
  - 150 Watts Continuous Program Power
  - 75 Watts Continuous Pink Noise (150W peak), 100 hrs
- Nominal Sensitivity: 89 dB, 1m/1 W
- Coverage Angle: 110° conical
- Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
- Impedance: 16 ohms
- Maximum SPL (1m): 107 dB (low-impedance, 113 dB peak)
- Drivers:
  - LF Driver: 165 mm (6.5 in)
  - HF Driver: 19 mm (¾ in)
- Terminations: Removable 4-pin locking connector with screw-down terminals.
- Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
- Net Weight (each): 2.7 kg (6 lbs)
- Shipping Weight (pair): 6.4 kg (15 lbs)
- Sensitivity: 89 dB (100 Hz - 10 kHz)
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (included "blind-mount")
- Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
- Ceiling Cutout Size: 220 mm (8.75 in) diameter (cardboard cutout template included)
- Plenum Usage: Yes, backcan included

Further Product Information Below

JBL Control 26C Manual (PDF)

JBL Control 26C Data Sheet (PDF)

JBL Contractor Series Brochure (PDF)

JBL Control 26C 6.5-Inch Coaxial Ceiling Speaker Supplied With

- 2x JBL Control 26C Micro ceiling speakers
- 2x Grilles
- C-shaped support backing plate
- 2 tile support rails (fits both 2 ft and 600 mm tiles)
- Cutout template
- Paint shield
- Removable locking wiring connector
