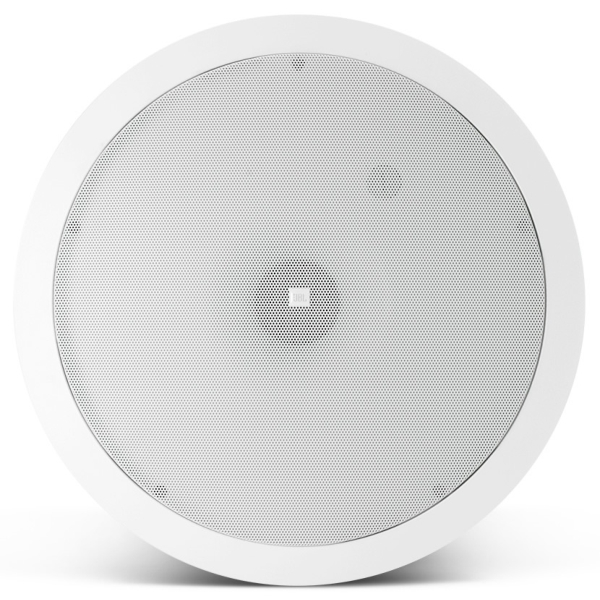

JBL Control 19CST 8-Inch Ceiling Subwoofer (Pair), 70V or 100V Line - White
The JBL Control 19CST 8-Inch Ceiling Subwoofer uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
Click Here for Printer Friendly Version
JBL Control 19CST 8-Inch Ceiling Subwoofer Features- Unique Nested Chamber design- Component: Long excursion 200 mm (8 in) driver- Packaged with grille, backcan and tile rails for fast installation- Simple installation and wire connection method
JBL Control 19CST 8-Inch Ceiling Subwoofer Specifications- Frequency Range: 42 Hz - 200 Hz- Power Rating: See transformer taps- Transformer Taps: 75W, 30W, 15W (& 7.5W @ 70V)- Coverage Angle: 180° conical- Maximum SPL (1m): - Centre of Ceiling: 108 dB (70V/100V) - Near Corner: 114 dB (70V/100V)- Nominal Impedance: 8 ohms- Drivers: 200 mm (8.0 in) subwoofer- Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0- Input Connectors: Removable locking connector with screw-down terminals.- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.- Outside Dimensions (H x Dia): 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan- Ceiling Cutout Size: 305 mm (12.0 in) diameter (cardboard cutout template included)- Net Weight (each): 6.3 kg (14 lb)- Shipping Weight (pair): 14.3 kg (32 lb)- Sensitivity: - 95 dB SPL in ceiling near corner, - 89 dB in center of ceiling- Color: White- Backcan: formed steel (included "blind-mount")- Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0- Plenum Usage: Yes, backcan included
Further Product Information Below
Click Here for JBL Control 19CST Manual (PDF)
Click Here for JBL Control 19CST Data Sheet (PDF)
Click Here for JBL Contractor Series Brochure (PDF)
JBL Control 19CST 8-Inch Ceiling Subwoofer Supplied With- 2x JBL Control 19CST ceiling speakers- 2x Grilles- C-shaped support backing plate- 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)- Cutout template- Paint shield- Removable locking wiring connector
