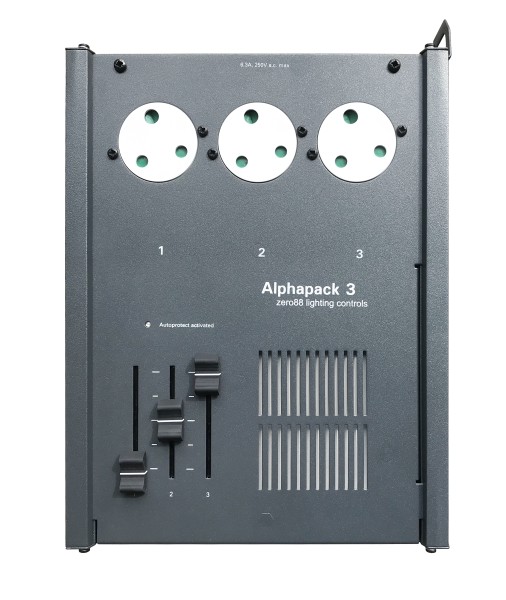

Zero88 AlphaPack 3-Channel DMX Dimmer with 3x 15A UK Sockets

The Zero88 AlphaPack 3-Channel DMX Dimmer with 3x 15A UK Sockets is a three channel portable dimmer unit, which can be safely secured to a vertical or horizontal bar by adding a standard clamp onto one of two new m10 mounting positions, or attached to a wall with the use of an additional mounting bracket (sold separately). One of Zero88's most popular dimmers, the Alphapack finds uses in all areas of the lighting industry. Rental, display, education, event services and live music users have all found the Alphapack to be a perfect solution. The local fader controls make the Alphapack 3 ideal for 'fit and forget' situations, as well as allowing use as a follow spot dimmer.
This compact and rugged unit has three faders for local control, or can be controlled remotely via DMX as part of a larger lighting system, providing maximum flexibility for a great price.
A unique safety system and overload protection circuit means that the Alphapack 3 provides an extremely safe and reliable solution to small dimming applications, never allowing the dimmer loads to draw more current than is available from the supply.

Zero88 AlphaPack 3-Channel DMX Dimmer with 3x 15A UK Sockets Features

- Three 6.3 Amp channels
- Three fader Local Control
- Autoprotect Overload
- DMX Control (addressable to any channel)
- M10 threaded mounting holes on top and rear
- Safety bond connection
- Optional wall mount bracket
- CE compliant to all relevant standards
- Designed and manufactured to ISO9001:2015 standards

Zero88 AlphaPack 3-Channel DMX Dimmer with 3x 15A UK Sockets Specifications

- Dimmer Output Connection: 3x 15A UK Sockets
- Number of channels: 3
- Channel capacity: 0.2 Amps Min / 6.3 Amps Max
- Total dimmer capacity: 16 Amps electronically limited
- Dimmer duty cycle: 100%
- Supply Voltage: 200-250 V AC
- Supply frequency: 50Hz
- Rise time: 80µS
- Control input: DMX512-1990 via 5 pin XLR with loop through
- Channel protection: 20mm 6.3A HRC
- Cooling: Convection
- Operating Temperature: +5°C to +40°C
- Humidity: 5% to 95% Non condensing

Physical:
- Dimensions:
  - Without Bracket (W x D x H): 240 x 315 x 85 mm
  - With Bracket (W x D x H): 245 x 336 x 85 mm (Bracket is sold separately)
- Weight: 3.5Kg / 8.0lb
