Artecta Havana Pixel Strip RGB 24V

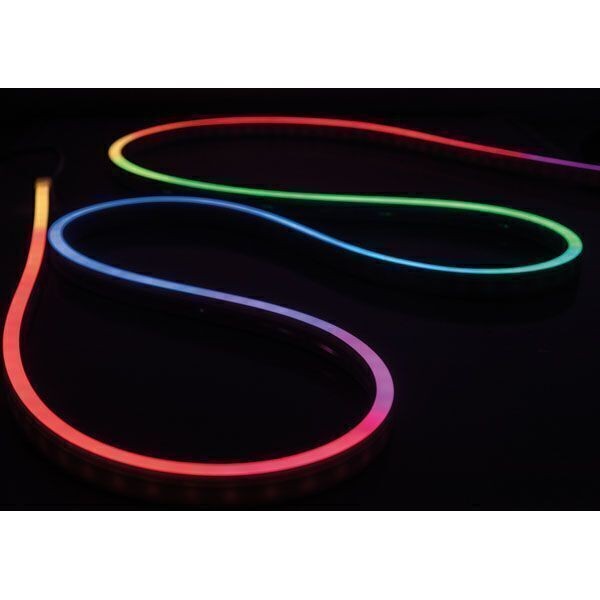

The Artecta Havana Pixel Strip RGB is a 72 watt RGB LED-strip with Individual Pixel Control, suitable for indoor applications. Its 300 LEDs (60 / m) are controllable per set of 6 LEDs, enabling you to create 50 individual controllable pixels that can be controlled in combination with a suitable pixel controller. Up to three Havana Pixel Strips are daisy-chainable and can run on one single 24 V power adapter. The strip can be attached to almost any smooth degreased surface due to its self-adhesive 3 m backing. Also, the strip can be used perfectly in an aluminium profile with a cover for protection against dust and moisture.
Please note that mounting Havana Pixel Strips in aluminium profiles is highly recommended for sufficient heat dissipation when planning to increase its power intensity to over 80 %.

Artecta Havana Pixel Strip RGB Features

- 72 W RGB LED strip
- Individual Pixel Control
- 5 metre
- 300 LEDs and 50 pixels (6 LEDs per pixel)
- Self-adhesive 3 m backing

Artecta Havana Pixel Strip RGB Specifications

- Beam Angle Circular: 120°
- Protocols: SPI
- Dimmable: Yes

Source:
- Light Source Type: LED
- Light Source Quantity (per metre): 60
- Light Source Power: 72 W
- LED Colour Type: RGB
- Light Source System: SW2811
- LED Colour Type: RGB
- Lumen Total: 2150 lm
- Lumen output (per metre): 430 lm
- Lumen Red: 110 lm
- Lumen Green: 260 lm
- Lumen Blue: 60 lm
- CRI: 82

Electrical:
- Power Supply: 24 VDC
- Power Consumption: 72 W
- Power (per metre): 14.4 W
- Driver: Excluded

Physical:
- Reel Length: 5 m
- Maximum Length: 17m
- Cutting Length: 100 mm
- IP Rating: IP20 (indoor use only)
- Maximum Ambient Temperature: 50 °C
- Minimum Ambient Temperature: -20 °C
- Dimensions (W x H x D): 10 x 2.1 x 5000 mm
- Weight: 0.176 kg
