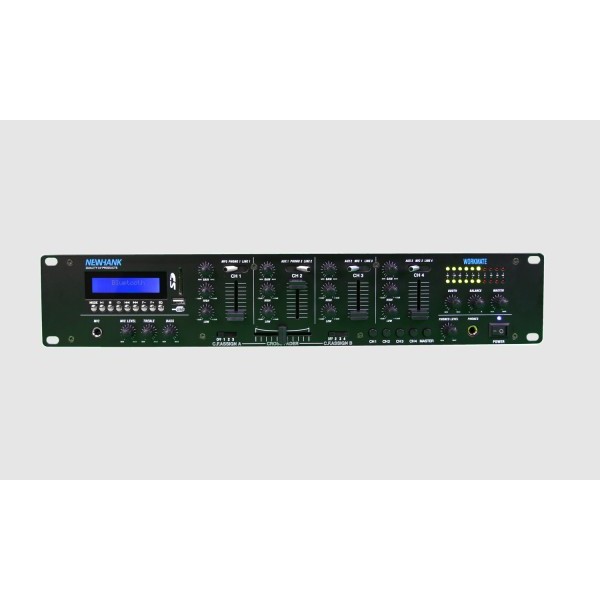

Newhank Workmate Mixer with 7 Line inputs, 3 Mic, USB, SD and BlueTooth Player

Newhank Workmate Mixer with 7 Line inputs, 3 Mic, USB, SD and BlueTooth Player

Ref: JP101708

Newhank Workmate Mixer with 7 Line inputs, 3 Mic, USB, SD and BlueTooth Player

The Newhank Workmate Mixer with 7 Line inputs, 3 Mic, USB, SD and BlueTooth Player is a complete stereo mixer/pre-amplifier and smart media player. 4 volume/channel faders and the possibility of connecting 9 external devices, including 2 record players. Switching between these devices is easily done thru Select Switches on the front.


Newhank Workmate Mixer with 7 Line inputs, 3 Mic, USB, SD and BlueTooth Player Features

- Compact 2u low noise audio design
- 4 Line control channels plus separate Mic section
- 2 stereo phono, 7 stereo Line and 3 Mic inputs
- 2-band equalizer per channel
- Stereo Master audio out on both RCA and balanced XLR
- Balanced stereo Booth output on 6.3MM connectors
- Stereo record output on RCA connectors
- Master balance control
- CUE per channel plus gain control
- The player section:
- Smart Media Player
- Select play from USB, SD (both max 32GB) and thru Bluetooth
- Plays both WAV and MP3 files
- All, Single, Repeat and Random Play


Newhank Workmate Mixer with 7 Line inputs, 3 Mic, USB, SD and BlueTooth Player Specifications

- Power Consumption: 12W typical, 21W w/ full headphone output.
- Power Supply: Integrated transformer AC 230V-50Hz.
- Weight:3 kg
- Mic: 600 ohm input impedance unbalanced
- Line: 9V rms max
- Dimensions: 19 inch 2U Rack mount, Front 483x88mm Rear
- Line/Aux: 10Kohm input impedance
- Package Dimension: 555 x 325 x 470 mm
- Operating Temperature: 5 to 35 °C
- Humidity: 25 to 85%. (Non-condensing)
- Storage Temperature: -20 to 60 °C




For Product Information & Pricing please Click Here Contact us for more images if needed
