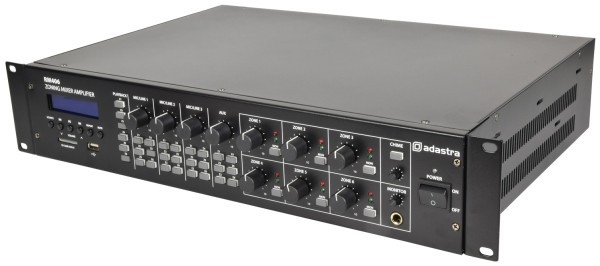

Adastra RM406 Zone Mixer Amplifier, 6x 40W @ 4/8 Ohm or 100V Line with USB, SD, FM and Bluetooth

The Adastra RM406 Zone Mixer Amplifier, 6x 40W @ 4/8 Ohm or 100V Line with USB, SD, FM and Bluetooth is a zone mixer-amplifier with 6x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

Adastra RM406 Zone Mixer Amplifier, 6x 40W @ 4/8 Ohm or 100V Line with USB, SD, FM and Bluetooth Features

- Integral USB/SD/FM audio player
- Internal Bluetooth receiver
- 100V or 4/8 Ohms operation
- 6 independent output zones
- 3 mic/line and 1 auxiliary input
- Mic priority and chime functions
- Switchable +20V phantom power
- 24V mute contacts
- Monitor headphones output

Adastra RM406 Zone Mixer Amplifier, 6x 40W @ 4/8 Ohm or 100V Line with USB, SD, FM and Bluetooth Specifications

- Power Supply: 170-264Vac, 50Hz (IEC - Powerd Chord Included)
- Power Output: 6x 40W
- Amplifier: Class D + transformer outputs
- Phantom Power: +20V switchable to each XLR
- Mute: 24V relay contacts
- THD: <0.76% @ 1kHz
- Bluetooth Version: 2.0
- Frequency Response: 100Hz - 24kHz
- Dimensions: 433 x 89 x 403 mm
- Weight: 11kg
- Audio Sources:
  - USB Type-A (Front Mounted)
  - SD Card (Front Mounted)
  - FM Radio - Type-F Connector for Antenna (Rear Mounted)
  - Bluetooth Audo
- Inputs:
  - 3x Mic/Line - Shared XLR/6.3mm Jack socket (Rear Mounted)
  - 1x Auxilury - RCA Stereo Pair (Rear Mounted)
- Input Impedance (Mic/Line): 1 kΩ
- Input Sensitivity:
  - Line: -11dB
  - Mic: -46dB
- Signal to Noise Ratio:
  - Line: 84dB
  - Mic: 82dB
- Zone Outputs:
  - Line: 6x RCA (mono)
  - Speaker: 6x terminal outputs 100V / 8Ω / 4Ω / Com
- Monitor Outputs:
  - 6.3mm Jack for Headphones (Front Mounted)
  - 1x RCA Stereo Pair (Rear Mounted)
