Citronic LHF-CM10 10-Inch Coaxial LF + HF Driver for CM-series Passive Wedge Monitors, 250W

Name: Citronic LHF-CM10 10-Inch Coaxial LF + HF Driver for CM-series Passive Wedge Monitors, 250W
Brand: Citronic
Price: 92.6 GBP
Availability: InStock

Price Each £77.17 (£92.60 Including VAT at 20%)

REF: JP106799

Quantity:

Citronic LHF-CM10 10-Inch Coaxial LF + HF Driver for CM-series Passive Wedge Monitors, 250W

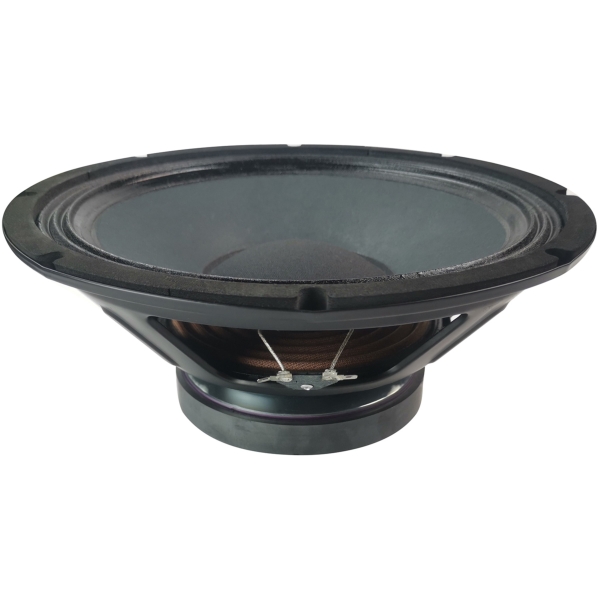

The Citronic LHF-CM10 10-Inch Coaxial LF + HF Driver for CM-series Passive Wedge Monitors comprising a high power main woofer with a concentric tweeter driver covered by a mesh dust cap. Provides full range output with phase alignment for foldback or PA applications. A direct replacement for the CM-series passive wedge monitors.

Click Here for Printer Friendly Version

Citronic LHF-CM10 10-Inch Coaxial LF + HF Driver for CM-series Passive Wedge Monitors Specifications

- Drivers:
  - HF: 44 mmØ (1.75-inch) Titanium compression driver
  - LF: 250 mmØ (10-inch) with 50 mmØ (2-inch) voice coil and concentric tweeter
- Magnet weight: 1.13 kg (40 oz)
- Power (HF):
  - RMS: 40 W
  - Peak: 80 W
- Power (LF):
  - RMS: 250 W
  - Peak: 500 W
- Frequency response: 40 Hz - 20 kHz
- Sensitivity:
  - HF: 106 dB
  - LF: 94 dB
- Amplifier Construction: Class-D
- Impedance: 4 Ω

Physical:
- Dimensions: 250 x 165 x 250 mm
- Weight: 1.8 kg

Further Product Information Below

Citronic CM Series Speakers Manual (PDF)
