Chauvet Pro COLORado Batten Q15 RGBW LED Batten, 15x 20W - IP65

Chauvet Pro COLORado Batten Q15 RGBW LED Batten Features

- Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
- All environment operation with IP rated power and DMX connections

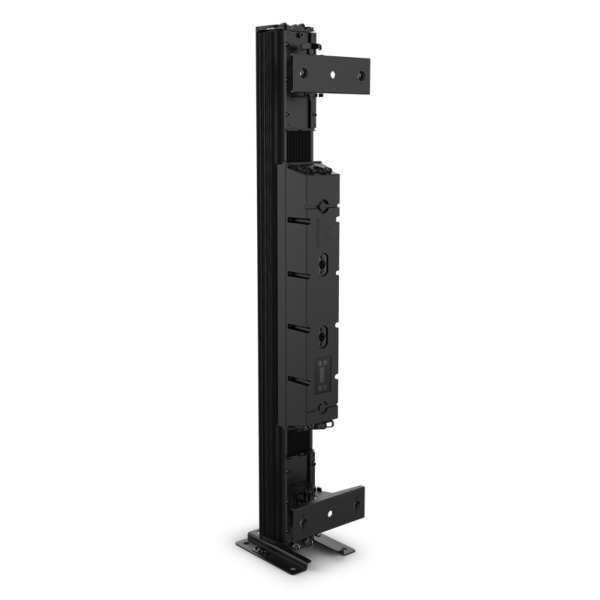

- Unique end-cap and back plate mounting options
- Color temperature presets, from 1800 K to 8000 K
- Selectable, smooth dimming curves for programming versatility
- Built for touring, live event, television, and theatrical productions
- Large, easy to navigate display with password protection

Chauvet Pro COLORado Batten Q15 RGBW LED Batten Specifications

Optical:
- Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
- Color Temperature (range): 1800 to 8000 K
- Installed Optics: 16°
- Beam Angle:
  - Horizontal, no Filter: 15.5°
  - Horizontal, with Filter: 41.9°
  - Vertical, no Filter: 14.7°
  - Vertical, with Filter: 15.3°
- Field Angle:
  - Horizontal, no Filter: 28.6°
  - Horizontal, with Filter: 77.9°
  - Vertical, no Filter: 28.1°
  - Vertical, with Filter: 32.1°
- Lumens: 6,324
- Lumens w/Filter: 5,547
- Illuminance (total):
  - No Filter: 2,399 lux @ 5 m
  - With Filter: 653 lux @ 5 m
- Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 5
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes

Connections:
- Power Connection: Edison (Local) plug to PowerCON IP65
- Power Input: PowerCON IP65
- Power Output: PowerCON IP65
- Data Connectors: 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: DMX, RDM
- DMX Channels:
  - 1 Cell: 4, 6, 8, 10
  - 15 Cell: 45, 60, 64, 66, 76
- Modes/Personalities: 9 personalities

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Exterior Color: Black
- Housing Material: Aluminum alloy
- Dimensions (W x H x D): 1047 x 185 x 166.4 mm (41.22 x 7.28 x 6.55 inches)
- Weight: 13 kg (28.8 lb)

Further Product Information Below

Chauvet Pro COLORado Batten Q15 Manual (PDF)

Chauvet Pro COLORado Batten Q15 Data Sheet (PDF)

Chauvet Pro COLORado Batten Q15 Quick Reference Guide (PDF)

Chauvet Pro COLORado Batten Q15 RGBW LED Batten Supplied With

- Chauvet Colorado Batten Q15
- PowerCON IP65 power cord
- 2x Omega Bracket
- Base Plate
- 2x Retaining Pins
- 2x Safety Cable
- Glare Shield
- Filter
