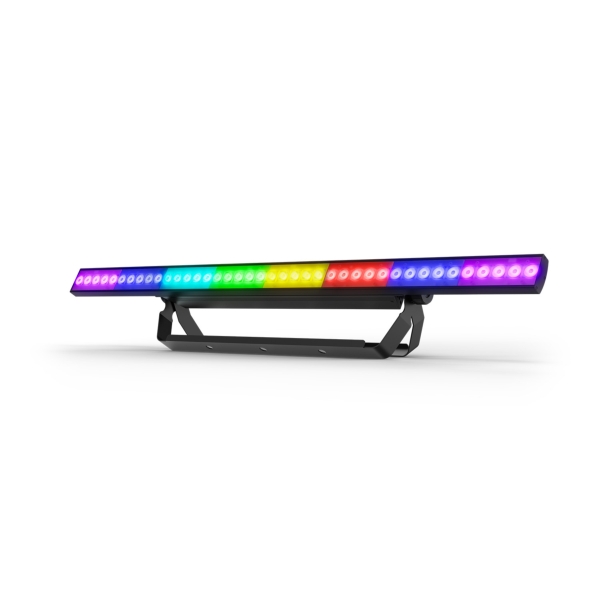

Chauvet DJ COLORstrip PiX ILS Linear RGB LED Batten with Pixel Map, 40x 2W

Chauvet DJ COLORstrip PiX ILS Linear RGB LED Batten with Pixel Map Features

- Full-size LED strip light functions as a pixel mapping effect, uplight, or for great eye-candy effects
- ILS compatibility for use in the ILS ecosystem
- Create dazzling effects by linking multiple units together to make runway chases
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Create amazing animations and video effects with individual LED control
- Ideal for quiet applications due to silent operation and no moving parts
- Wireless, non-DMX operation is available with the optional IRC-6 remote
- Easily transports in the optional CHS-60 VIP Gear Bag

Chauvet DJ COLORstrip PiX ILS Linear RGB LED Batten with Pixel Map Specifications

- DMX Channels: 3, 8, 120, 122
- DMX Connectors: 3-pin XLR
- Light Source: 40 LEDs (tri-color) 2 W, (0.8A), 50,000 hours life expectancy.
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 14°
- Field Angle: 24°
- Illuminance: 4,967 lux @ 2 m
- Lumens: 1,491
- Power Linking: 7 units @ 120 V; 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 77 W, 0.8 A @ 230 V, 50 Hz
- Approvals: CE, ROHS
- Cable Length: 5 ft (1.52 m)
- Bracket Mounting Hole: 13mm
- Optional Controllers: IRC6, ILS Command
- Dimensions (W x H x D): 987 x 157 x 49 mm (38.9 x 2 x 6.2 inches)
- Weight: 2.8 kg

Further Product Information Below

Chauvet Pro COLORstrip PiX ILS Data Sheet (PDF)

Chauvet DJ COLORstrip PiX ILS Linear RGB LED Batten with Pixel Map Supplied With

- 1x Chauvet COLORstrip Pix ILS
- 1x Power cord
- 1x Quick Reference Guide
