B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver - 110W RMS, 8 Ohm, 120 Degree Dispersion

Name: B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver - 110W RMS, 8 Ohm, 120 Degree Dispersion
Brand: B&C
SKU: JP61429
Price: 363.47 GBP
Availability: InStock

Price Each £302.89 (£363.47 Including VAT at 20%)

REF: JP61429

Quantity:

B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver - 110W RMS, 8 Ohm, 120 Degree Dispersion

The B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver Features

- Line Array optimized Waveguide with DE980TN driver
- 120° max horizontal coverage
- 220 W continuous program power capacity
- 75 mm (3 inch) CCAW voice coil
- Titanium diaphragm
- 500 - 18000 Hz response
- 108.5 dB sensitivity
- Neodymium magnet assembly with shorting copper cap

B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver Specifications

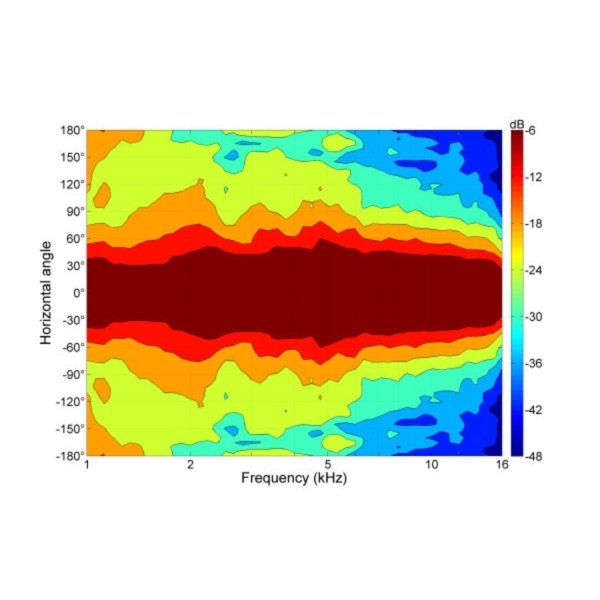

- Horizontal Coverage: 120 ° Max
- Active Radiating Factor: 93.7 %
- Waveguide Material: Cast Aluminium

High Frequency Unit Specifications:
- Throat Diameter: 36 mm (1.4 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 8.1 Ω
- Nominal Power Handling: 110 W
- Continuous Power Handling: 220 W
- Sensitivity (1W/1m): 108.5 dB
- Frequency Range: 0.5 - 18 kHz
- Recommended Crossover: 1.2 kHz
- Voice coil Diameter: 75 mm (3.0 inches)
- Winding Material: Aluminium
- Inductance: 0.1 mH
- Diaphragm Material: Titanium
- Flux Density: 2.05 T
- Magnet Material: Neodymium Ring

Physical:
- Exit Size: 153 x 25 mm (6 x 1 inches)
- Driver Diameter: 131 mm (5.16 inches)
- Dimensions: 130 x 163 x 235 mm (5.1 x 6.4 x 9.3 inches)
- Net Weight: 3.35 kg (7.39 lb)

Further Product Information Below

B & C WGX980TN Data Sheet (PDF)

B & C WGX980TN Technical Drawing (PDF)

B & C DE980TN (8 Ohm) Data Sheet (PDF)
