B&C ME7 0.75-Inch Horn Flare - 60 x 40 Degree Dispersion

B&C ME7 0.75-Inch Horn Flare Features

- Exponential flare with great directivity control
- 60° x 40° nominal coverage
- ¾-inch throat entry
- Excellent loading down to 2 kHz

B&C ME7 0.75-Inch Horn Flare Specifications

- Throat Diameter: 19 mm (0.75 inch)

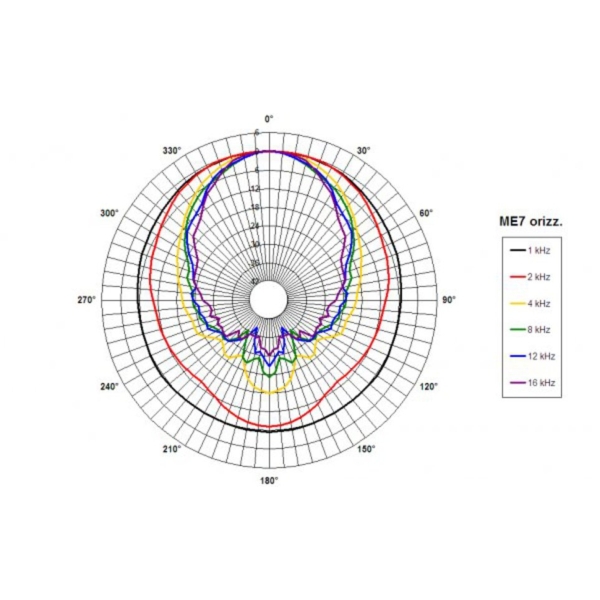

- Nominal Coverage:
  - Horizontal: 60 °
  - Vertical: 40 °
- Cutoff Frequency: 2.0 kHz
- Material: ABS

Physical:
- Dimensions (W x H x D): 122 x 122 x 102 mm (4.8 x 4.8 x 4 inches)
- Baffle Cutout Dimension (W x H): 102.7 x 102.7 mm (4 x 4 inches)
- Driver Mounting: 2x 4.1 mm (0.16 inch) holes 180° on 53 mm (2.1 inch) diameter
- Air Volume Occupied by Driver: 0.1 dm³ (0.0 ft³)
- Net Weight: 0.11 kg (0.25 lb)

Further Product Information Below

B & C ME7 Data Sheet (PDF)

B & C ME7 Technical Drawing (PDF)
