B&C ME464 1.4-Inch Line Array Waveguide for B&C DCX464 - 70 x 55 Degree Dispersion

The B&C ME148 Line Array Waveguide built to extract the full capabilities of our wide-bandwidth ring radiator drivers, B&C's new ME464 is the largest commercially available horn for professional audio. The 22-inch (575 mm) wide mouth loads an attached driver to 300Hz, and the 1.4” throat stabilizes a 80° x 60° polar pattern to the upper limit of human hearing. Made of durable and non-resonant polyurethane, the ME464 can stand up to road use as well as shine in high output arrays in fixed installation. Reduced inter-box interaction and off axis energy from the tight pattern brings immediate benefits to sound quality and clarity, and the ME464 is the only horn which can support the full frequency response of our DCX464 coaxial driver. The ME464 can be easily applied to the DCX464 using the FB468 crossover, which is available in 8 or 16 Ohm configurations.

Click Here for Printer Friendly Version

B&C ME464 1.4-Inch Line Array Waveguide Features

- 1.4-inch throat entry
- 80° x 60° nominal coverage
- Constant Directivity
- Excellent loading down to 300 Hz

B&C ME464 1.4-Inch Line Array Waveguide Specifications

- Throat Diameter: 36 mm (1.4 inch)
- Nominal Coverage:
- Horizontal: 80 °
- Vertical: 60 °
- Cutoff Frequency: 0.3 kHz
- Material: Polyurethane
- Design: Constant Directivity

Physical:
- Dimensions (W x H x D): 575 x 505 x 460 mm (22.64 x 19.88 x 18.11 inches)
- Baffle Cutout Dimension (W x H): 538 x 470 mm (21.18 x 18.5 inches)
- Driver Mounting: 4x 6.5 mm (0.255 inch) holes 90° on 102 mm (4 inch) diameter
- Air Volume Occupied by Driver: 35.5 dm³ (1.25 ft³)
- Net Weight: 4.75 kg (10.47 lb)

Further Product Information Below

B & C ME464 Data Sheet (PDF)

B & C ME464 Technical Drawing (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

B&C ME464 1.4-Inch Line Array Waveguide for B&C DCX464 - 70 x 55 Degree Dispersion

Related products:

B&C DCX464 1.4-Inch Coaxial Compression Driver - 110W RMS, 16 Ohm

B&C ME90 1.4-Inch Horn Flare - 80 x 60 Degree Dispersion

B&C ME142 1.4-Inch Line Array Waveguide - 120 Degree Horizontal Dispersion

B&C ME148 1.4-Inch Line Array Waveguide - 120 Degree Horizontal Dispersion

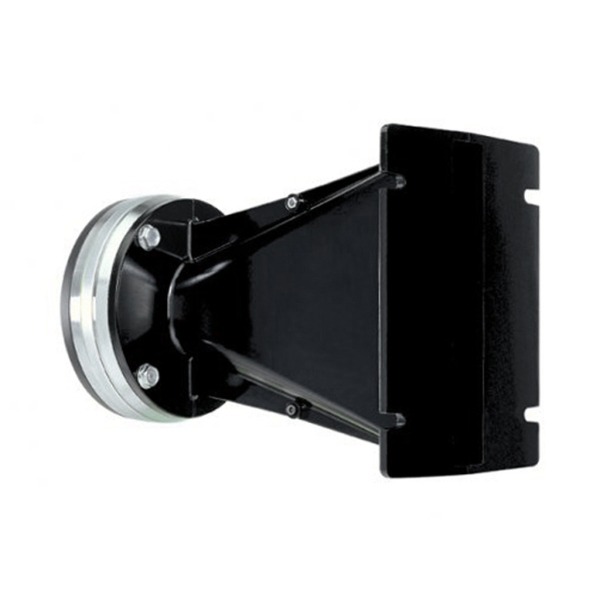

B&C WGX800 Line Array Waveguide with B&C DE800 Compression Driver - 110W RMS, 8 Ohm, 120 Degree Dispersion

B&C WGX880TN Line Array Waveguide with B&C DE880TN Compression Driver - 110W RMS, 8 Ohm, 120 Degree Dispersion

B&C WGX980TN Line Array Waveguide with B&C DE980TN Compression Driver - 110W RMS, 8 Ohm, 120 Degree Dispersion

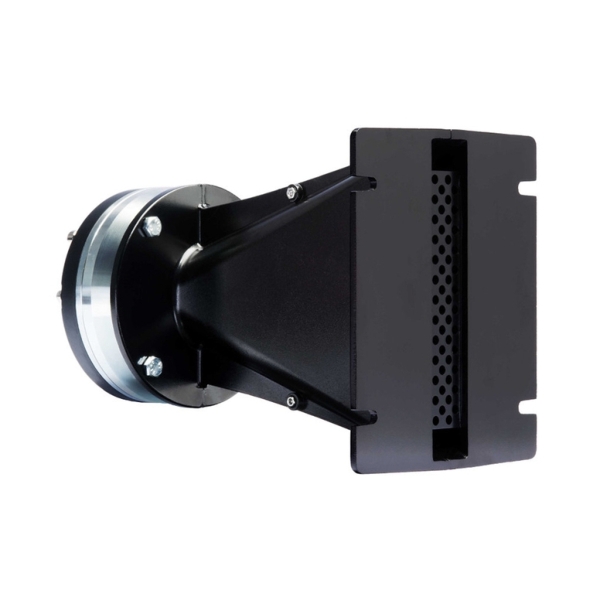

B&C WGX990TN Line Array Waveguide with B&C DE990TN Compression Driver - 100W RMS, 8 Ohm, 120 Degree Dispersion

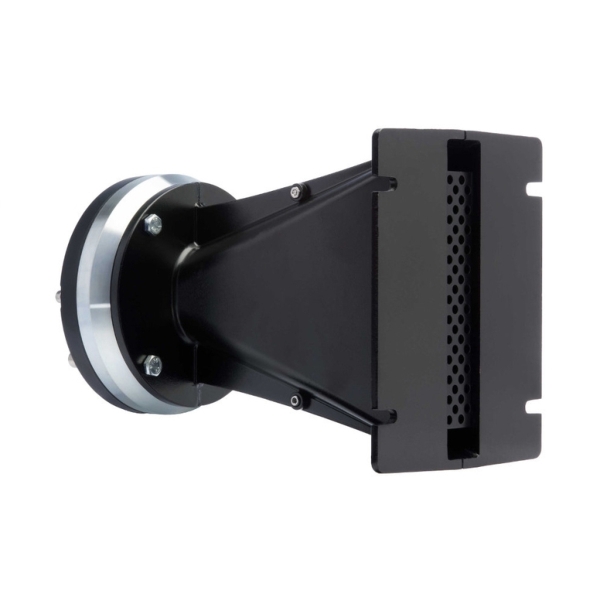

B&C WGX1090TN Line Array Waveguide with B&C DE1090TN Compression Driver - 120W RMS, 8 Ohm, 120 Degree Dispersion

B&C ME7 0.75-Inch Horn Flare - 60 x 40 Degree Dispersion

B&C WG7 Dual Line Array Waveguide with 2x B&C DE7 Compression Drivers - 20W, 4 Ohm, 150 Degree Dispersion

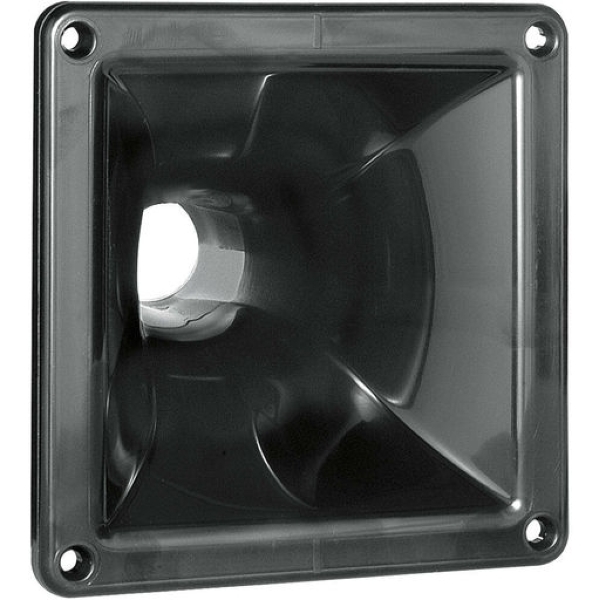

B&C ME10 v2 1-Inch Horn Flare - 90 x 60 Degree Dispersion

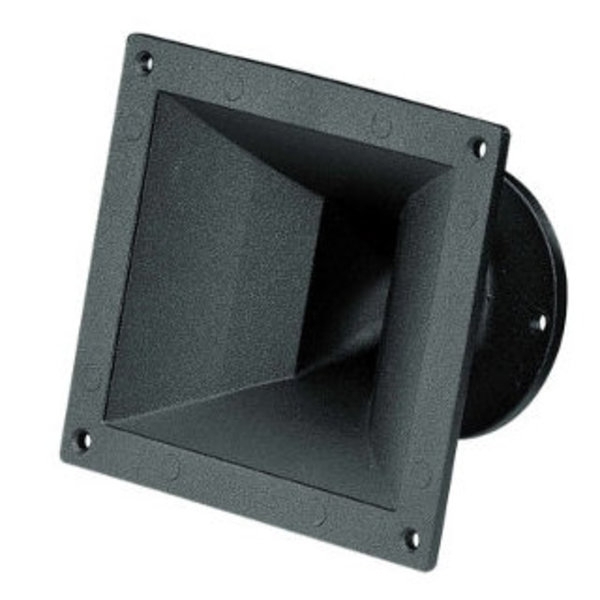

B&C ME15 1-Inch Horn Flare - 90 x 60 Degree Dispersion

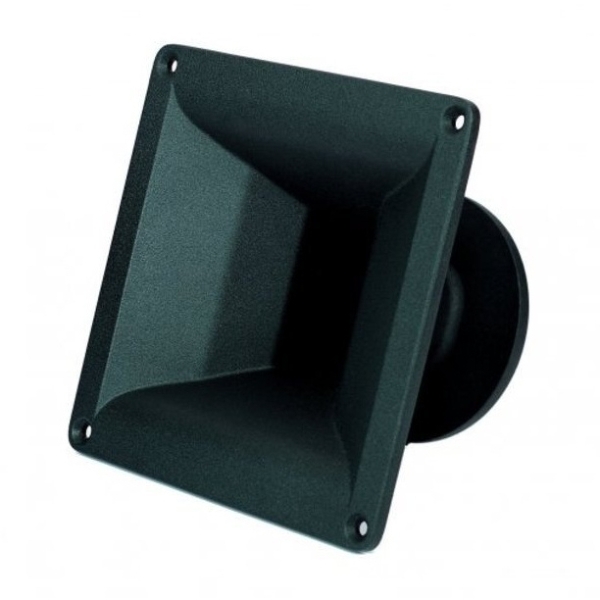

B&C ME20 1-Inch Horn Flare - 90 x 60 Degree Dispersion

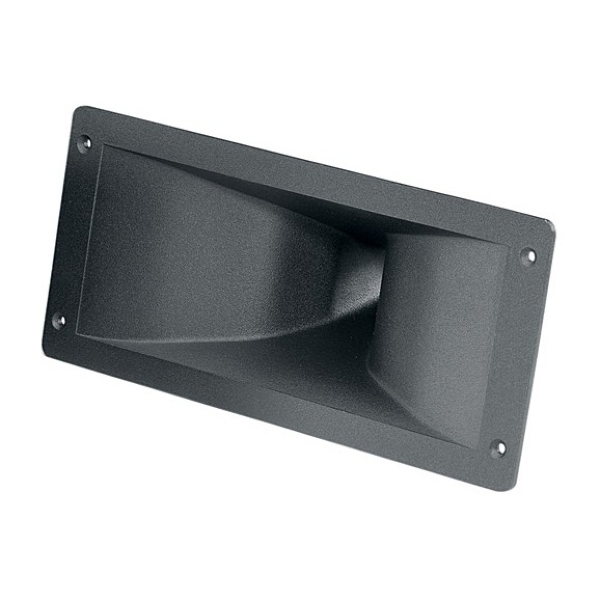

B&C ME45 1-Inch Horn Flare - 90 x 40 Degree Dispersion
