B&C ME148 1.4-Inch Line Array Waveguide - 120 Degree Horizontal Dispersion

B&C ME148 1.4-Inch Line Array Waveguide Features

- 1.4-inch throat entry
- Line Array optimized Waveguide
- 120° max horizontal coverage
- Vertical coverage depends on configuration
- Very good loading down to 500 Hz
- Designed specifically for the extra octaves in our coaxial compression driver

B&C ME148 1.4-Inch Line Array Waveguide Specifications

- Throat Diameter: 36 mm (1.4 inch)
- Nominal Coverage:
  - Horizontal: 120 ° (Maximum)

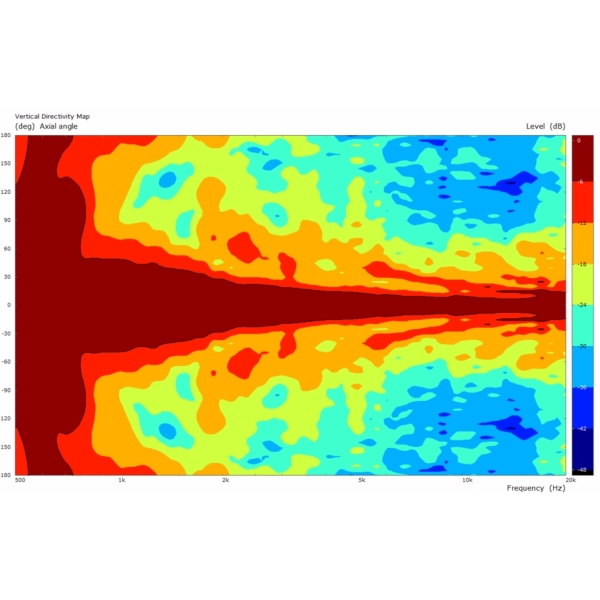

  - Vertical: Dependant on Configuration
- Cutoff Frequency: 0.5 kHz
- Material: Polycarbonate
- Design: Line Array Optimized Waveguide

Physical:
- Dimensions (W x H x D): 80 x 240 x 174.5 mm (3.15 x 9.45 x 6.87 inches)
- Baffle Cutout Dimension (W x H): 25.4 x 224 mm (1.0 x 8.82 inches)
- Net Weight: 0.97 kg (2.14 lb)

Further Product Information Below

B & C ME148 Data Sheet (PDF)

B & C ME148 Technical Drawing (PDF)
