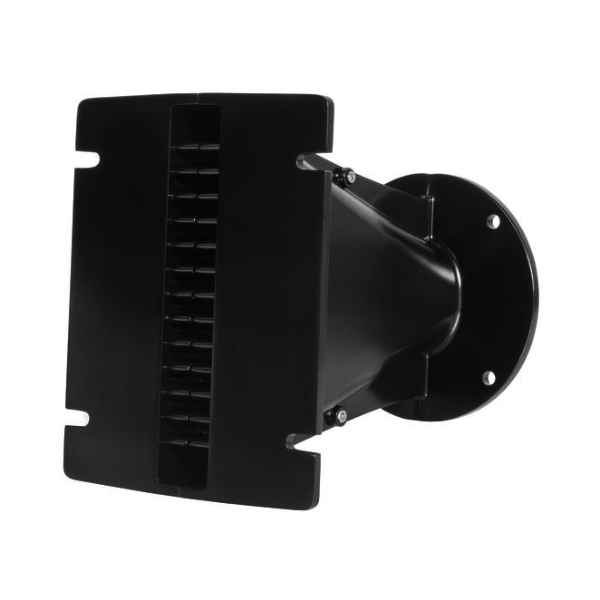

B&C ME142 1.4-Inch Line Array Waveguide - 120 Degree Horizontal Dispersion

B&C ME142 1.4-Inch Line Array Waveguide Features

- 1.4-inch throat entry
- Line Array optimized Waveguide
- 120° max horizontal coverage
- Vertical coverage depends on configuration
- Very good loading down to 800 Hz

B&C ME142 1.4-Inch Line Array Waveguide Specifications

- Throat Diameter: 36 mm (1.4 inch)
- Nominal Coverage:

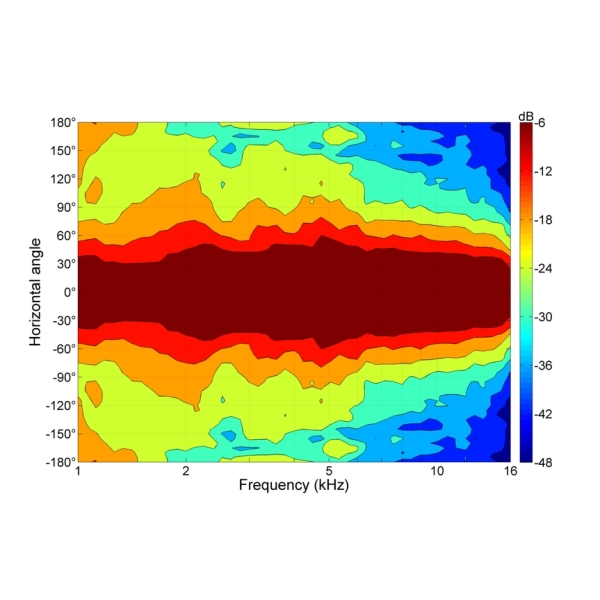

  - Horizontal: 120 ° (Maximum)
  - Vertical: Dependant on Configuration
- Cutoff Frequency: 0.8 kHz
- Material: Cast Aluminium
- Design: Line Array Optimized Waveguide

Physical:
- Dimensions (W x H x D): 130 x 160 x 180 mm (5.12 x 6.42 x 7.09 inches)
- Baffle Cutout Dimension (W x H): 25.4 x 153 mm (1.0 x 6.0 inches)
- Driver Mounting: 4x 6.5 mm (0.255 inch) holes 90° on 102 mm (4 inch) diameter
- Net Weight: 1.05 kg (2.31 lb)

Further Product Information Below

B & C ME142 Data Sheet (PDF)

B & C ME142 Technical Drawing (PDF)
