Name: B&C ME10 v2 1-Inch Horn Flare - 90 x 60 Degree Dispersion
Brand: B&C
SKU: JP104729
Price: 24.46 GBP
Availability: InStock

B&C ME10 v2 1-Inch Horn Flare - 90 x 60 Degree Dispersion

Price Each £20.38 (£24.46 Including VAT at 20%)

REF: JP104729

Quantity:

B&C ME10 v2 1-Inch Horn Flare - 90 x 60 Degree Dispersion

The B&C ME10 v2 1-Inch Horn Flare replaces the ME10. The revised design adds two additional mounting holes to expand driver compatibility. The ME10v2 should be backwards compatible with most previous applications for the ME10, but we recommend that all users check the product revised drawings, to be certain.

Click Here for Printer Friendly Version

B&C ME10 v2 1-Inch Horn Flare Features

- 1-inch throat entry
- 90° x 60° nominal coverage
- Hyperbolic Cosine Flare
- Excellent loading down to 1.5 kHz

B&C ME10 v2 1-Inch Horn Flare Specifications

- Throat Diameter: 25 mm (1.0 inch)
- Nominal Coverage:

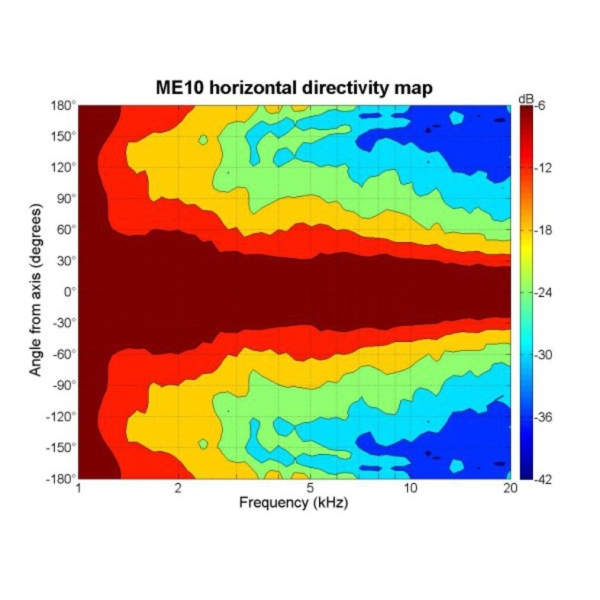

  - Horizontal: 90 °
  - Vertical: 60 °
- Cutoff Frequency: 1.5 kHz
- Material: ABS
- Design: Hyperbolic Cosine Flare

Physical:
- Dimensions (W x H x D): 130.5 x 130.5 x 90 mm (5.1 x 5.1 x 3.5 inches)
- Baffle Cutout Dimension (W x H): 104 x 104 mm (4.1 x 4.1 inches)
- Driver Mounting:
  - 4x 5.5 mm (0.22 inch) holes 90° on 76 mm (3 inch) diameter
  - 2x 6.3 mm (0.25 inch) holes 180° on 57.2 mm (2.26 inch) diameter
- Air Volume Occupied by Driver: 0.15 dm³ (0.01 ft³)
- Net Weight: 0.17 kg (0.37 lb)

Further Product Information Below

B & C ME10 v2 Data Sheet (PDF)

B & C ME10 v2 Technical Drawing (PDF)
