B&C FBCXN88 2-Way Crossover for B&C 12CXN88, 14CXN88 and 15CXN88 Coaxial Drivers - 1.6kHz, 8 Ohm

Price Each £74.86 (£89.83 Including VAT at 20%)

REF: JP105312

Quantity:

B&C FBCXN88 2-Way Crossover for B&C 12CXN88, 14CXN88 and 15CXN88 Coaxial Drivers - 1.6kHz, 8 Ohm

The B&C FBCXN88 2-Way Crossover for B&C 12CXN88, 14CXN88 and 15CXN88 Coaxial Drivers is a cross over designed for the B&C 12CXN88, 14CXN88 and 15CXN88 Coaxial Drivers. Suitable for use with similar specification speakers.

Click Here for Printer Friendly Version

B&C FBCXN88 2-Way Crossover for B&C 12CXN88, 14CXN88 and 15CXN88 Coaxial Drivers Specifications

- Nominal Impedance: 8 Ω
- Crossover Frequency: 1.6 kHz
- Filter Type: Two Way
- Low-pass Slope: 18.0 dB/oct
- High-pass Slope: 12.0 dB/oct

Physical:

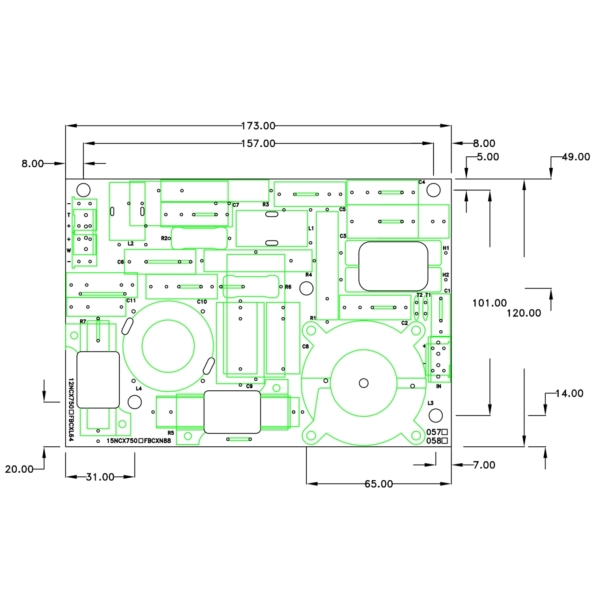

- Mounting: Five 6 mm diameter holes on PCB for crossover filter fixing
- Dimensions: 173 x 120 mm (6.81 x 4.72 inches)
- Net Weight: 0.65 kg (1.43 lb)

Further Product Information Below

B & C FBCXN88 Data Sheet (PDF)

B & C FBCXN88 Circuit Diagram (PDF)
