B&C FB4648 2-Way Crossover for B&C DCX462 and DCX464 Coaxial Compression Drivers - 3.6kHz, 8 Ohm

Name: B&C FB4648 2-Way Crossover for B&C DCX462 and DCX464 Coaxial Compression Drivers - 3.6kHz, 8 Ohm
Brand: B&C
SKU: JP105309
Price: 76.93 GBP
Availability: InStock

Price Each £64.11 (£76.93 Including VAT at 20%)

REF: JP105309

Quantity:

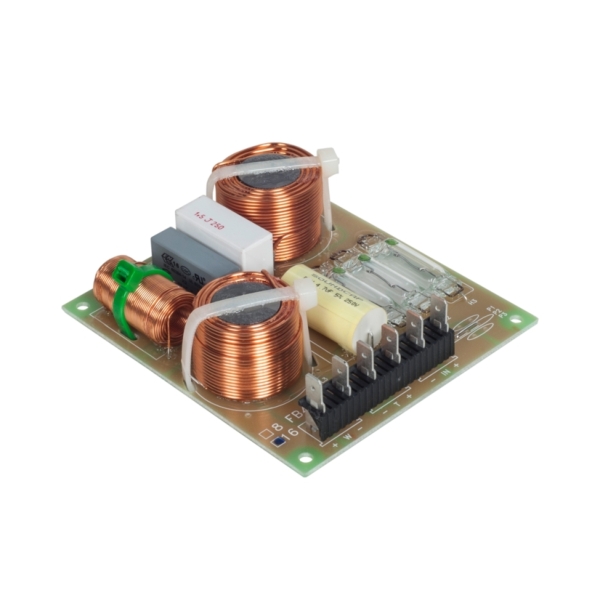

B&C FB4648 2-Way Crossover for B&C DCX462 and DCX464 Coaxial Compression Drivers - 3.6kHz, 8 Ohm

The B&C FB4648 2-Way Crossover for B&C DCX462 and DCX464 Coaxial Compression Drivers is specifically designed for use in conjunction with the ME464, 300Hz horn, users of all types can now have flat high-fidelity response out of the box using 100% OEM components. The FB464 crossover phase aligns the mid and high frequency elements of the DCX464, and implements an asymmetrical slope crossover at 3.6kHz yielding flat response, with no loss in sensitivity. This crossover frequency best balances energy between the two diaphragms for minimum distortion at all output levels. Series protection is additionally provided by industrial filament bulbs which prevent over power or inconsistent tonal balance at very high output.

Click Here for Printer Friendly Version

B&C FB4648 2-Way Crossover for B&C DCX462 and DCX464 Coaxial Compression Drivers Specifications

- Nominal Impedance: 8 Ω
- Crossover Frequency: 3.6 kHz
- Filter Type: Two Way
- Low-pass Slope: 18.0 dB/oct
- High-pass Slope: 12.0 dB/oct

Physical:
- Mounting: 4 mm diameter holes on the PCB at 100 mm x 90 mm
- Dimensions: 100 x 110 mm (3.94 x 4.33 inches)
- Net Weight: 0.36 kg (0.79 lb)

Further Product Information Below

B & C FB4648 Data Sheet (PDF)

B & C FB4648 Circuit Diagram (PDF)

B & C DCX462 (8 Ohm) Data Sheet (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

B&C FB4648 2-Way Crossover for B&C DCX462 and DCX464 Coaxial Compression Drivers - 3.6kHz, 8 Ohm

Related products:

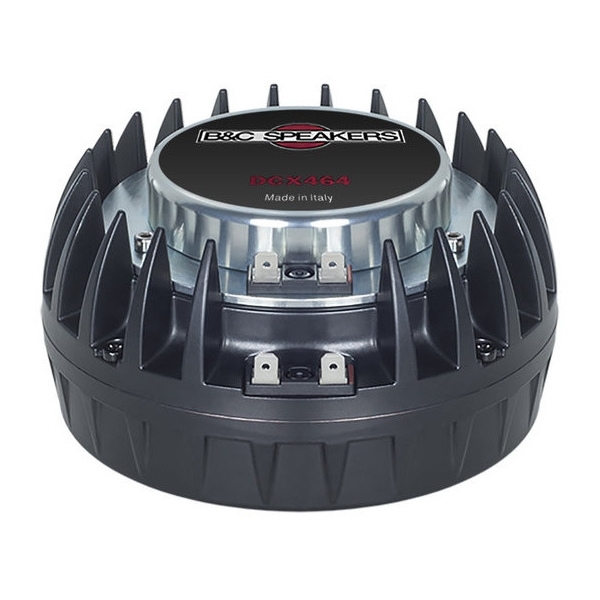

B&C DCX464 1.4-Inch Coaxial Compression Driver - 110W RMS, 8 Ohm
