B&C FB10CX64 Crossover for the B&C 10CXN64 and 10FCX64 Coaxial Drivers - 2.1 kHz, 8 Ohm

Name: B&C FB10CX64 Crossover for the B&C 10CXN64 and 10FCX64 Coaxial Drivers - 2.1 kHz, 8 Ohm
Brand: B&C
SKU: JP105307
Price: 104.87 GBP
Availability: InStock

Price Each £87.39 (£104.87 Including VAT at 20%)

REF: JP105307

Quantity:

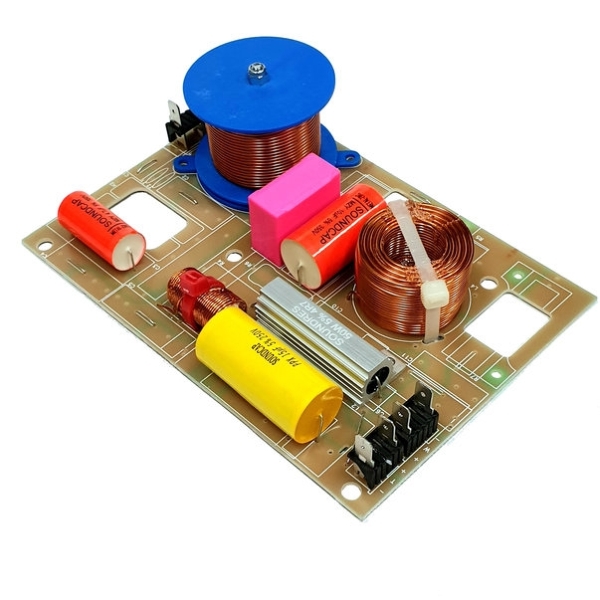

B&C FB10CX64 Crossover for the B&C 10CXN64 and 10FCX64 Coaxial Drivers - 2.1 kHz, 8 Ohm

The B&C FB10CX64 Crossover for the B&C 10CXN64 and 10FCX64 Coaxial Drivers is a cross over designed for the B&C 10CXN64 and 10FCX64 Coaxial Drivers. Suitable for use with similar specification speakers.

Click Here for Printer Friendly Version

B&C FB10CX64 Crossover for the B&C 10CXN64 and 10FCX64 Coaxial Drivers Specifications

- Nominal Impedance: 8 Ω
- Crossover Frequency: 2.1 kHz
- Filter Type: Two Way
- Low-pass Slope: 18.0 dB/oct
- High-pass Slope: 18.0 dB/oct

Physical:
- Mounting: Five 6 mm diameter holes on the PCB for crossover filter fixing
- Dimensions: 173 x 120 mm (6.81 x 4.72 inches)
- Net Weight: 0.6 kg (1.32 lb)

Further Product Information Below

B & C FB10CX64 Data Sheet (PDF)

B & C FB10CX64 Circuit Diagram (PDF)

B & C 10CNX64 (8 Ohm) Data Sheet (PDF)
