B&C DE750TN 1.5-Inch Compression Driver - 110W RMS, 16 Ohm

Name: B&C DE750TN 1.5-Inch Compression Driver - 110W RMS, 16 Ohm
Brand: B&C
SKU: JP61348
Price: 231.84 GBP
Availability: InStock

Price Each £193.20 (£231.84 Including VAT at 20%)

REF: JP61348

Quantity:

B&C DE750TN 1.5-Inch Compression Driver - 110W RMS, 16 Ohm

The B&C DE750TN boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Replacement Diaphragm: JP61422 (B&C MMD3ATN16)

Click Here for Printer Friendly Version

B&C DE750TN 1.5-Inch Compression Driver Features

- 220 W continuous program power capacity
- 2-inch horn throat diameter
- 75 mm (3 inch) aluminium voice coil
- Titanium diaphragm
- 500 - 18000 Hz response
- 107.5 dB sensitivity
- Shorting copper cap for extended HF response

B&C DE750TN 1.5-Inch Compression Driver Specifications

- Throat Diameter: 50 mm (2.0 inches)

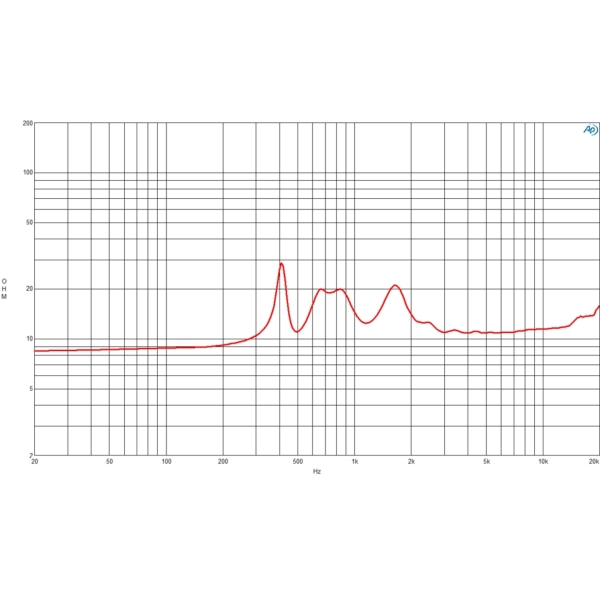

- Nominal Impedance: 16 Ω
- Minimum Impedance: 11.3 Ω
- Nominal Power Handling: 110 W
- Continuous Power Handling: 220 W

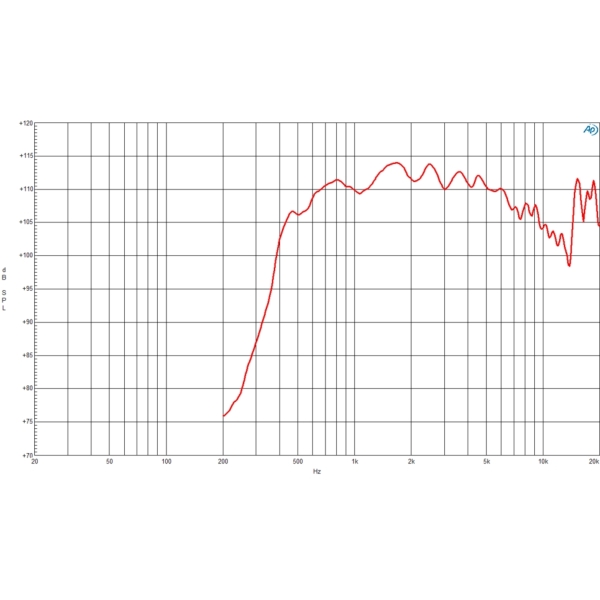

- Sensitivity (1W/1m): 107.5 dB
- Frequency Range: 0.5 - 18 kHz
- Recommended Crossover: 0.8 kHz
- Voice coil Diameter: 75 mm (3.0 inches)
- Winding Material: Aluminium
- Inductance: 0.14 mH
- Diaphragm Material: Titanium
- Flux Density: 1.9 T
- Magnet Material: Ferrite

Physical:
- Mounting:
- Four M6 holes 90° on 102 mm (4 inch) diameter
- Four M6 Mounting Studs with bolts and washers included
- Overall diameter: 180 mm (7.1 inches)
- Depth: 87 mm (3.4 inches)
- Net weight: 6.1 kg

Further Product Information Below

B & C DE750TN (16 Ohm) Data Sheet (PDF)

B & C DE750TN Technical Drawing (PDF)
