B&C DE610 1.4-Inch Compression Driver - 80W RMS, 16 Ohm

Name: B&C DE610 1.4-Inch Compression Driver - 80W RMS, 16 Ohm
Brand: B&C
SKU: JP61399
Price: 137.41 GBP
Availability: InStock

Price Each £114.51 (£137.41 Including VAT at 20%)

REF: JP61399

Quantity:

B&C DE610 1.4-Inch Compression Driver - 80W RMS, 16 Ohm

The B&C DE610 boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Replacement Diaphragm: JP61367 (B&C MMD61016)

Click Here for Printer Friendly Version

B&C DE610 1.4-Inch Compression Driver Features

- 160 W continuous program power capacity
- 1.4-inch horn throat diameter
- 65 mm (2.5 inch) aluminium voice coil
- Titanium diaphragm
- 1000 - 18000 Hz response
- 108 dB sensitivity
- Shorting copper cap for extended HF response

B&C DE610 1.4-Inch Compression Driver Specifications

- Throat Diameter: 36 mm (1.4 inches)
- Nominal Impedance: 16 Ω

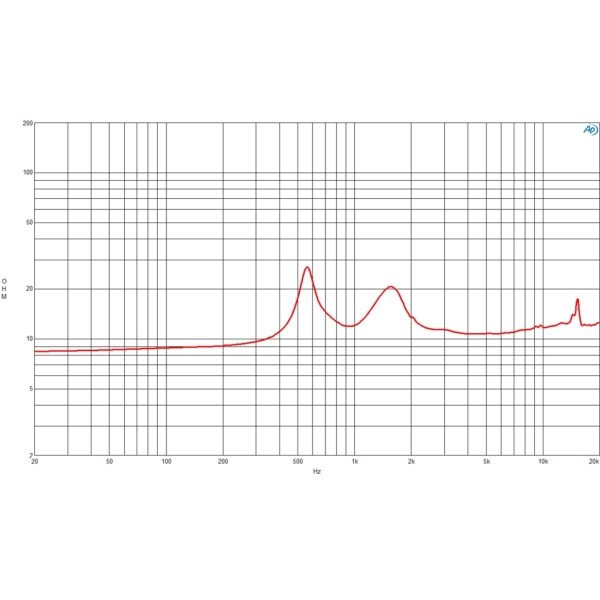

- Minimum Impedance: 10.7 Ω
- Nominal Power Handling: 80 W
- Continuous Power Handling: 160 W
- Sensitivity (1W/1m): 108.0 dB
- Frequency Range: 1.0 - 18 kHz
- Recommended Crossover: 1.2 kHz
- Voice coil Diameter: 65 mm (2.5 inches)
- Winding Material: Aluminium
- Inductance: 0.15 mH
- Diaphragm Material: Titanium
- Flux Density: 1.75 T
- Magnet Material: Ferrite

Physical:
- Mounting:
- Four M6 holes 90° on 102 mm (4 inch) diameter
- Four M6 Mounting Studs with bolts and washers included
- Overall diameter: 156 mm (6.1 inches)
- Depth: 65 mm (2.5 inches)
- Net weight: 3.8 kg

Further Product Information Below

B & C DE610 (16 Ohm) Data Sheet (PDF)

B & C DE610 Technical Drawing (PDF)
