B&C DE602 1.4-Inch Compression Driver - 80W RMS, 8 Ohm

Price Each £114.39 (£137.27 Including VAT at 20%)

REF: JP61098

Quantity:

B&C DE602 1.4-Inch Compression Driver - 80W RMS, 8 Ohm

The B&C DE602 boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C DE602 1.4-Inch Compression Driver Features

- 160 W continuous program power capacity
- 1.4-inch horn throat diameter
- 65 mm (2.5 inch) aluminium voice coil
- Titanium diaphragm

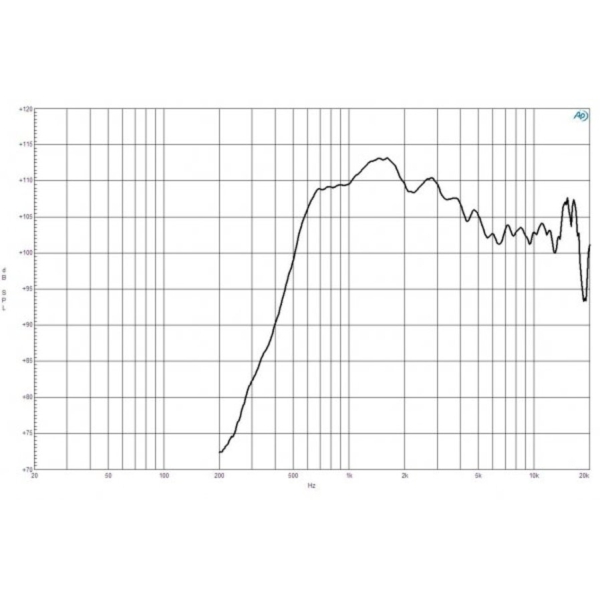

- 1000 - 18000 Hz response
- 108 dB sensitivity
- Shorting copper cap for extended HF response

B&C DE602 1.4-Inch Compression Driver Specifications

- Throat Diameter: 36 mm (1.4 inches)

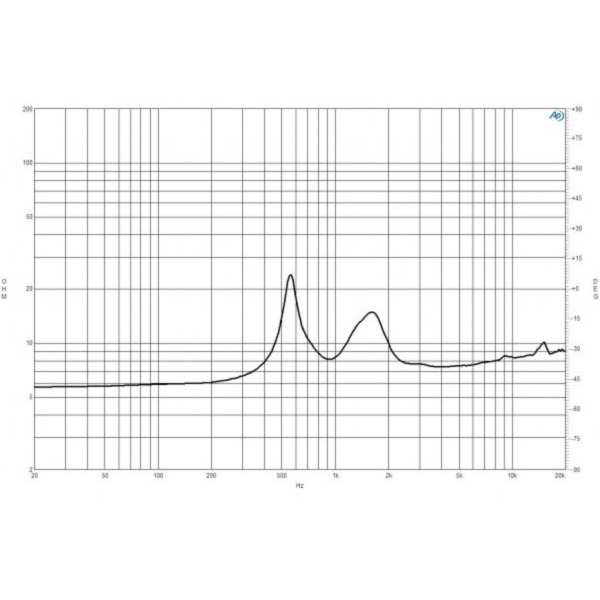

- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.6 Ω
- Nominal Power Handling: 80 W
- Continuous Power Handling: 160 W
- Sensitivity (1W/1m): 108.0 dB
- Frequency Range: 1.0 - 18 kHz
- Recommended Crossover: 1.2 kHz
- Voice coil Diameter: 65 mm (2.5 inches)
- Winding Material: Aluminium
- Inductance: 0.15 mH
- Diaphragm Material: Titanium
- Flux Density: 1.55 T
- Magnet Material: Ferrite

Physical:
- Mounting:
- Four M6 holes 90° on 102 mm (4 inch) diameter
- Four M6 Mounting Studs with bolts and washers included
- Overall diameter: 145 mm (5.7 inches)
- Depth: 65 mm (2.5 inches)
- Net weight: 3.4 kg

Further Product Information Below

B & C DE602 (8 Ohm) Data Sheet (PDF)

B & C DE602 Technical Drawing (PDF)
