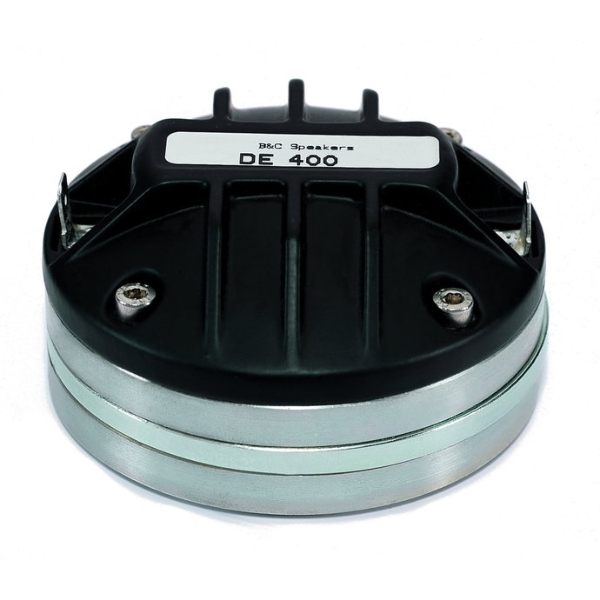

B&C DE400 1-Inch Compression Driver - 50W RMS, 8 Ohm, Spade Terminals

Price Each £87.44 (£104.93 Including VAT at 20%)

REF: JP61022

Quantity:

B&C DE400 1-Inch Compression Driver - 50W RMS, 8 Ohm, Spade Terminals

The B&C DE400 boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Replacement Diaphragm: JP61425 (B&C MMD4008)

Click Here for Printer Friendly Version

B&C DE400 1-Inch Compression Driver Features

- 100 W continuous program power capacity
- 1-inch horn throat diameter
- 44 mm (1.7 inch) aluminium voice coil
- Polyimide diaphragm
- 1200 - 18000 Hz response
- 108.5 dB sensitivity
- Compact Neodymium magnet assembly

B&C DE400 1-Inch Compression Driver Specifications

- Throat Diameter: 25 mm (1 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.7 Ω
- Nominal Power Handling: 50 W
- Continuous Power Handling: 100 W
- Sensitivity (1W/1m): 108.5 dB
- Frequency Range: 1.0 - 18 kHz
- Recommended Crossover: 1.6 kHz
- Voice coil Diameter: 44 mm (1.7 inches)
- Winding Material: Aluminium
- Inductance: 0.11 mH
- Diaphragm Material: Polyimide
- Flux Density: 1.8 T
- Magnet Material: Neodymium Ring

Physical:
- Mounting:
- Two M6 holes 180° on 76 mm (3.0 inch) diameter
- Two M6 Mounting Studs with bolts and washers included
- Overall diameter: 85 mm (3.3 inches)
- Depth: 44 mm (1.7 inches)
- Net weight: 0.86 kg

Further Product Information Below

B & C DE400 (8 Ohm) Data Sheet (PDF)

B & C DE400 Technical Drawing (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

B&C DE400 1-Inch Compression Driver - 50W RMS, 8 Ohm, Spade Terminals

Related products:

B&C MMD400 Replacement Diaphragm for B&C DE400, 8FCX21 and 8CXN21 Compression Drivers - 8 Ohm

B&C DE400TN 1-Inch Compression Driver - 50W RMS, 8 Ohm, Spade Terminals

B&C DE400 1-Inch Compression Driver - 50W RMS, 16 Ohm

B&C DE400TN 1-Inch Compression Driver - 50W RMS, 16 Ohm

B&C WG400 Line Array Waveguide with B&C DE400 Compression Driver - 50W RMS, 8 Ohm, 140 Degree Dispersion

B&C ME10 v2 1-Inch Horn Flare - 90 x 60 Degree Dispersion

B&C ME15 1-Inch Horn Flare - 90 x 60 Degree Dispersion

B&C ME20 1-Inch Horn Flare - 90 x 60 Degree Dispersion

B&C ME45 1-Inch Horn Flare - 90 x 40 Degree Dispersion

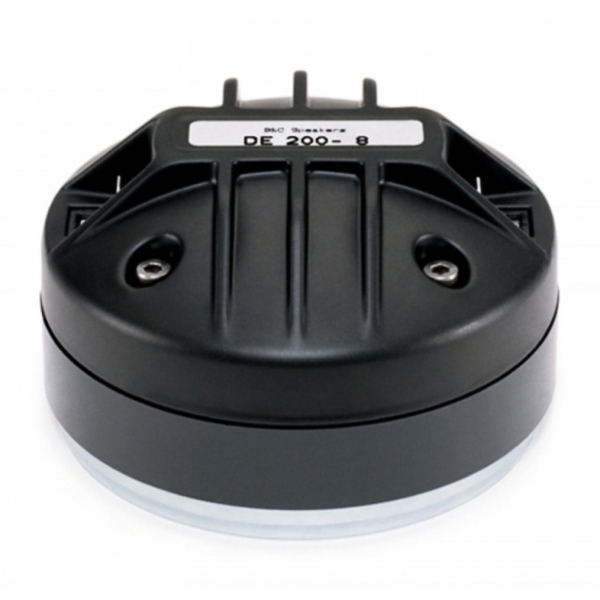

B&C DE200 1-Inch Compression Driver - 50W RMS, 8 Ohm
