B&C DE360 1-Inch Compression Driver - 35W RMS, 8 Ohm

Name: B&C DE360 1-Inch Compression Driver - 35W RMS, 8 Ohm
Brand: B&C
SKU: JP101926
Price: 73.96 GBP
Availability: InStock

Price Each £61.63 (£73.96 Including VAT at 20%)

REF: JP101926

Quantity:

B&C DE360 1-Inch Compression Driver - 35W RMS, 8 Ohm

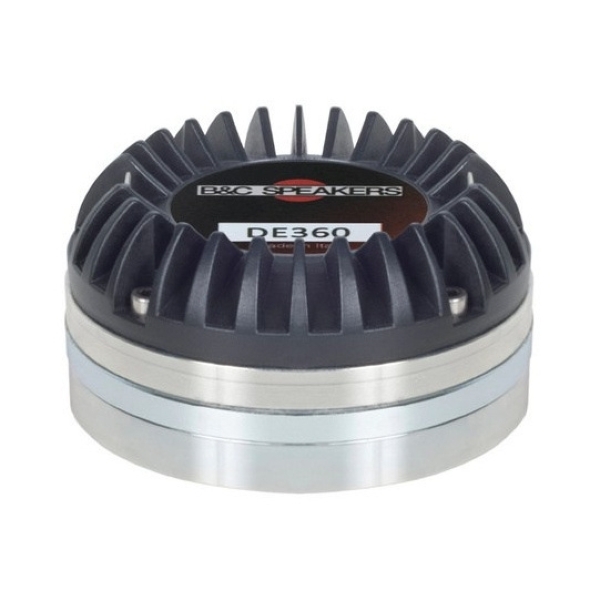

The B&C DE360 features a ketone polymer diaphragm with a ferrite magnet motor. Extensive FEA modeling and physical testing over the last several years has culminated in these 1.5 inch (38 mm) coil ring drivers with outstanding sensitivity, high frequency extension, and compactness. A practical recommended crossover point of 1.8 kHz and sensitivity of 108 dB in the DE36 allows for a wide range of applications, including compact two way boxes and line arrays.

Click Here for Printer Friendly Version

B&C DE360 1-Inch Compression Driver Features

- 70 W continuous program power capacity
- 110 dB sensitivity
- 1200 - 20000 Hz response
- 1-inch horn throat diameter
- 38 mm (1.5 inch) aluminum voice coil
- Annular HT polymer diaphragm

B&C DE360 1-Inch Compression Driver Specifications

- Throat Diameter: 25 mm (1 inch)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.6 Ω
- Nominal Power Handling: 35 W
- Continuous Power Handling: 70 W
- Sensitivity (1W/1m): 110.0 dB
- Frequency Range: 1.2 - 20 kHz
- Recommended Crossover: 1.8 kHz
- Voice coil Diameter: 38 mm (1.5 inches)
- Winding Material: Aluminium
- Inductance: 0.12 mH
- Diaphragm Material: HT Polymer
- Flux Density: 2.0 T
- Magnet Material: Neodymium Ring

Physical:
- Mounting:
- Two M6 holes 180° on 57 mm (2.2 inch) diameter
- Three M6 holes 120° on 57 mm (2.2 inch) diameter
- Overall diameter: 71 mm (2.8 inches)
- Depth: 37 mm (1.46 inches)
- Net weight: 0.5 kg

Further Product Information Below

B & C DE360 (8 Ohm) Data Sheet (PDF)

B & C DE360 Technical Drawing (PDF)
