B&C DE12TC 1-Inch Compression Driver - 30W RMS, 16 Ohm

Name: B&C DE12TC 1-Inch Compression Driver - 30W RMS, 16 Ohm
Brand: B&C
SKU: JP61383
Price: 61.01 GBP
Availability: InStock

Price Each £50.84 (£61.01 Including VAT at 20%)

REF: JP61383

Quantity:

B&C DE12TC 1-Inch Compression Driver - 30W RMS, 16 Ohm

The B&C DE12TC boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Replacement Diaphragm: JP102024 (B&C MMD12TN)

This is a suitable replacement compression driver for the Nexo PS8.

Click Here for Printer Friendly Version

B&C DE12TC 1-Inch Compression Driver Features

- 60 W continuous program power capacity
- 1-inch horn throat diameter
- 36 mm (1.4 inch) aluminium voice coil
- Titanium diaphragm

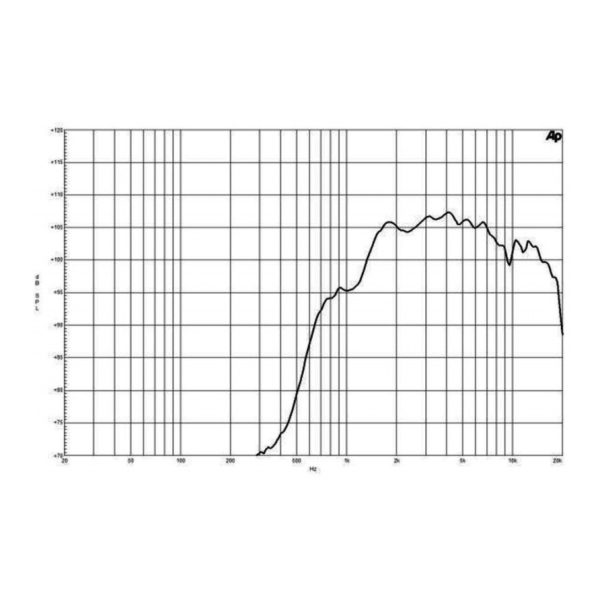

- 2000 - 18000 Hz response
- 105 dB sensitivity

B&C DE12TC 1-Inch Compression Driver Specifications

- Throat Diameter: 25 mm (1 inch)
- Nominal Impedance: 16 Ω
- Nominal Power Handling: 30 W
- Continuous Power Handling: 60 W
- Sensitivity (1W/1m): 105.0 dB
- Frequency Range: 2 - 18 kHz
- Recommended Crossover: 2.2 kHz
- Voice coil Diameter: 36 mm (1.4 inches)
- Winding Material: Aluminium
- Diaphragm Material: Titanium
- Magnet Material: Ferrite

Physical:
- Mounting: Two M5 holes 180° on 76 mm (3.0 inch) diameter
- Overall diameter: 90 mm (3.5 inches)
- Depth: 49 mm (2.0 inches)
- Net weight: 1.05 kg

Further Product Information Below

B & C DE12TC Technical Drawing (PDF)
